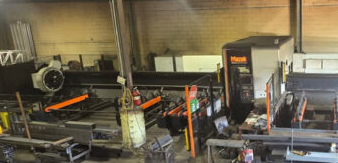

Mazak 3D FABRI-GEAR 400 II Mazak FX CNC control

X axis travel (Chuck L/R) 346"
U axis travel (Chuck L/R) 366"
V axis travel (Chuck L/R) 99"
Y axis travel 50"
Z axis travel 14.57"
A axis rotation ±0.999°
B axis swing ±135°
Rapid traverse X/U/V 1181 IPM
Rapid traverse Y 945 IPM
Rapid traverse Z 945 IPM
Mazak FX CNC control
3D tube laser system
CO2 laser 4000 W
Touch probe
Automatic material measurement system
Weld seam detector (mechanical type)
Small diameter work support jaws
Tapping unit
Additional loading system
Regulator start up kit
Robovent dust collector
Fire suppression system
Max material length loading 314.96"
Min material length loading 135.83"
Max workpiece weight 1764 lbs
Round pipe capacity 0.79" – 16"
Square pipe capacity 0.79" x 0.79" – 10" x 10"
H/I beam capacity 0.79" x 0.79" – 11.81" x 11.81"
Channel capacity 0.79" x 0.79" – 11.81" x 5.51"
Machine weight 77160 lbs
