Mazak CNC CONTROL 12000 rpm INTEGREX I-200 4 Axis

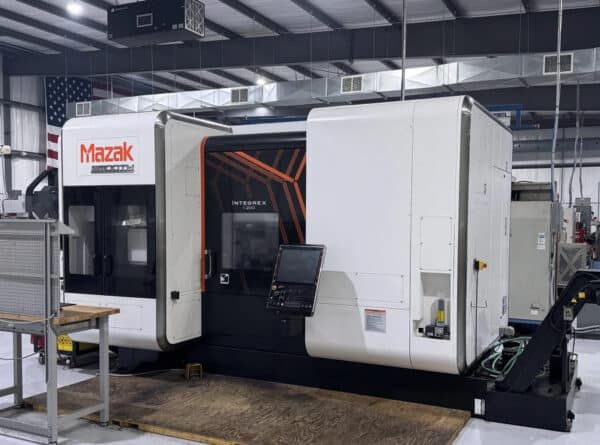

MAZAK INTEGREX I-200
2020

Swing 25.4″
Maximum machining diameter 25.4″
Maximum machining length 39.8″
X axis travel 24.21″
Z axis travel 42.4″
Y axis travel 10.24″
B axis index -30° to 210°
Chuck size 12″
Main spindle speed 3300 rpm
Main spindle nose A2-8
Spindle bore capacity 4.41″
Milling spindle type single spindle turret with ATC
Milling spindle speed 12000 rpm
B axis increment 0.0001°
Tool storage capacity 36
Tailstock travel 40.39″
Main spindle motor 40 hp / 30 hp
Milling spindle motor 30 hp / 20 hp
Y axis
Chip conveyor
B-axis resolution 0.0001°
72 CAPTCO
SmoothX 5-axis machining package
Chip and coolant management system
Coolant system
Tool radius compensation for 5-axis (G41.5 / G42.5)
