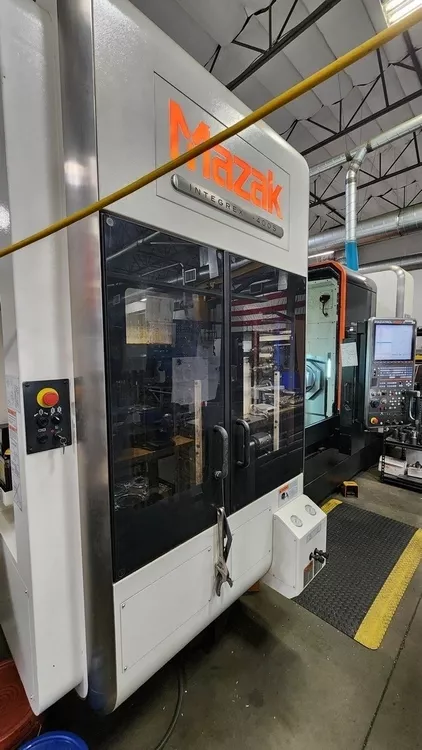

Mazak CNC CONTROL 3,300 RPM INTEGREX i400SR/1500 6 Axis

Swing Over Bed: 25.9 in
Turning Diameter: 25.9 in
Turning Length: 59.8 in
Distance Between Spindles: 61.96 in
X1-Axis Travel: 24.21 in
Z1-Axis Travel: 62.4 in
Y1-Axis Travel: 9.84 in
W-Axis Travel Sub Spindle: 61.96 in
B-Axis Head Indexing: 360°
C-Axis Indexing 1: 0.0001
C-Axis Indexing 2: 0.0001
Control: CNC
Chuck Size 1: 15 in
Spindle Nose 1: A2-8
Spindle Bore Diameter 1: 4.41 in
Bar Capacity 1: 4 in
Spindle Speeds 1: 3,300 RPM
Spindle Horsepower 1: 40 hp
Chuck Size 2: 15 in
Spindle Nose 2: A2-8
Spindle Bore Diameter 2: 3.58 in
Bar Capacity 2: 3 in
Spindle Speeds 2: 4,000 RPM
Spindle Horsepower 2: 35 hp
B-Axis Milling Spindle Taper: KM 63
B-Axis Milling Spindle Speed: 12,000 RPM
B-Axis Milling Spindle Horsepower: 30 hp
ATC For Milling Spindle: 72
Tool Diameter: 3.54 in / 4.92 in
Tool Length: 15.75 in
Tool Weight: 26.5 lb
Rapid Traverse Rate - X1: 1,969 ipm
Rapid Traverse Rate - Z1: 1,969 ipm
Rapid Traverse Rate - Y1: 1,575 ipm
Weight: 39,380 lbs
