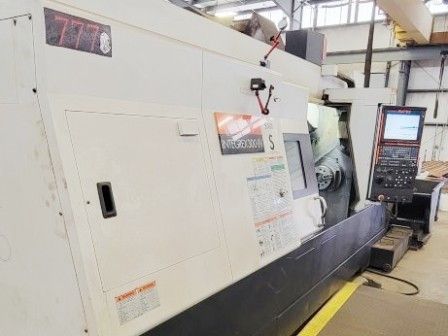

Mazak CNC CONTROL 4000 rpm Integrex 300-4S 6 Axis

X axis travel: 24.8 in
Y axis travel: ±4.13 in
Z axis travel: 62.41 in

X axis pitch error compensation
Y axis pitch error compensation
Z axis pitch error compensation

W axis travel: 60.24 in
B axis travel: ±120°
C axis positioning increment: 0.0001°

Maximum bar capacity: 3 in
Maximum swing: 30 in
Maximum cutting diameter: 30 in
Maximum machining length: 60 in
Main spindle chuck size: 10 in
Main spindle power: 40 HP
Main spindle speed: 4000 rpm
Main spindle nose: A2-8
Main spindle bore: 3.46 in
Main spindle indexing increment: 0.0001°
Spindle taper: KM
Second spindle chuck size: 10 in
Second spindle power: 35 HP
Second spindle speed: 4000 rpm
Second spindle bore: 2 in
Milling spindle power: 25 HP
Milling spindle speed: 12000 rpm
Rapid traverse rate X: 1496 ipm
Rapid traverse rate Y: 1024 ipm
Rapid traverse rate Z: 1496 ipm
Rapid traverse rate C: 555 rpm
Number of tool stations: 40
Milling spindle synchronous tapping
Coolant through milling head
Automatic tool eye
Re-threading function
Chip conveyor
