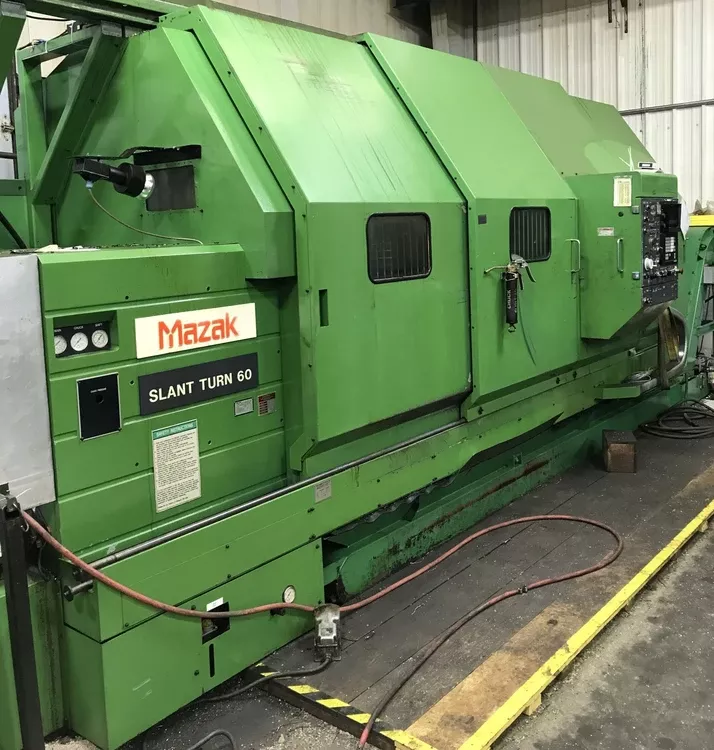

Mazak CNC control Fanuc 11T 1000 RPM ST 60 U 3 Axis

Feedrate, Rapid and/or Axis travel:
X-axis travel 25.6″
Z-axis travel 105″
X-axis rapid traverse 315 IPM
Y-axis rapid traverse 400 IPM

Control and features:
CNC control Fanuc 11T
Programmable tailstock
Coolant system
Chip conveyor
Full enclosure sliding doors
Hardened and ground ways

Bar capacity and swing:
Bar capacity 6.5″
Swing over bed 36″
Swing over turret 27″

Spindle specs:
Spindle nose A2-11
Spindle speed up to 1000 RPM
Spindle motor 40 HP
4-speed enclosed gearbox

Chuck and tooling:
Chuck size 19.5″
Chuck type Forkardt air-operated 3-jaw
Number of turrets 1
Turret positions 15
Hydraulic steady rest

Machine size, weight, and additional equipment:
Tailstock quill diameter 5″
Tailstock quill travel 6″
Tailstock body travel 77″
Machine dimensions 110″ x 320″
Machine height 130″
Machine weight 38,800 lbs
