Mazak CNC control Mazatrol Matrix Nexus 1600 RPM CYBERTECH TURN 4500M/3000 3 Axis

MAZAK CYBERTECH TURN 4500M/3000
2012

Maximum swing 33.88"
Maximum turning diameter 31.88"
Main spindle bore 7.28"
Maximum bar capacity 5.5"
Tailstock
Maximum cutting length 120"
X-axis travel 21.375"
Z-axis travel 123.25"
C-axis indexing .001°
W-axis travel 100.39"
Main spindle chuck size 21"
Main spindle chuck type hydraulic
Main spindle speed 1600 RPM
Main spindle horsepower continuous 50
Rear chuck no
Rear chuck type manual
Number of turrets 1
Turret tool positions 12
Turret rotary tool spindle speed 3000 RPM
Turret rotary tool horsepower 15
Boring bar stocker 2-position
Boring bar holder yes
Steady rest yes
Chip conveyor side
Tool eye automatic front spindle yes
Coolant through milling head yes
Multi-tap transformer yes
CNC control Mazatrol Matrix Nexus
Dimensions 284" x 98" x 111"
Machine weight 35,715 lbs
Matrix Nexus control

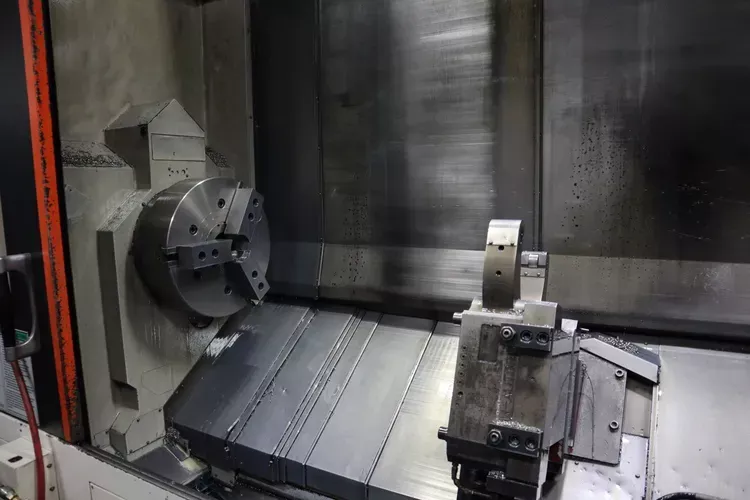

21" Kitagawa chuck
2-position boring bar holder
Hydraulic steady rest
Tailstock milling on turret
C-axis
Chip conveyor
Oil chiller
12-position turret
High-pressure pump
Remote jog handle
Deep hole boring with automatic changer
Auto tool measuring system
Mist collector
EIA spiral and EIA 3D compensation
Rotation with geometric and scaling extended data I/O
Thread and inverse time
Auto TLM with polar coordinates input
Comparison stop and G54.1 600 variable offsets
EIA helical tap cycle and EIA pattern cycle
Tilted work plane
