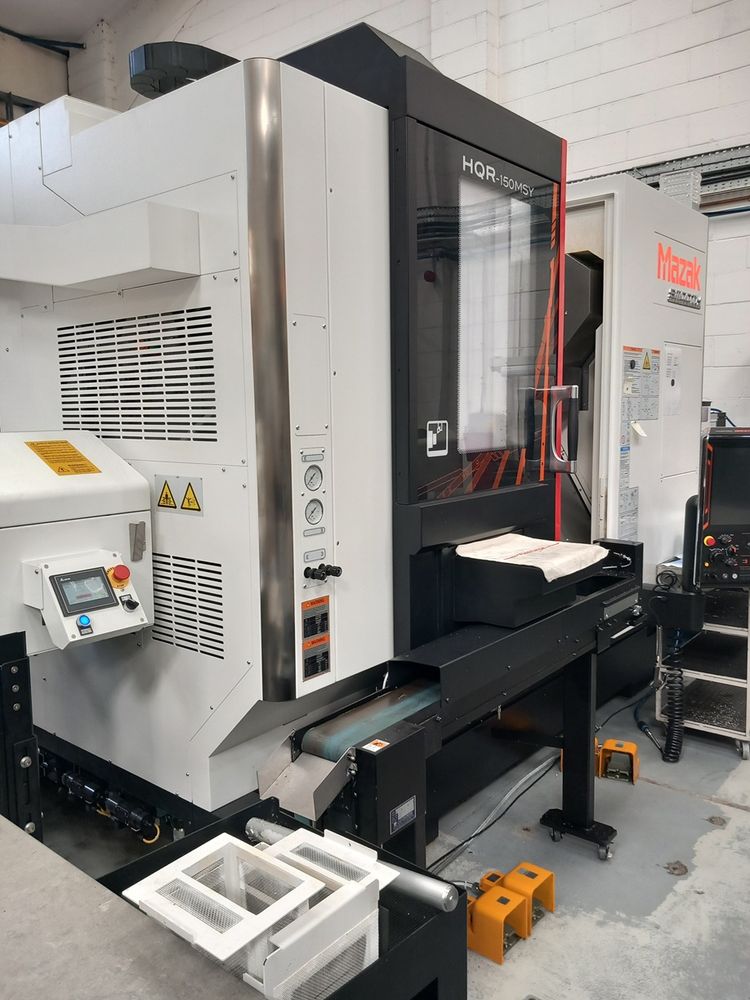

Mazak CNC Lathe with Twin Turret Sub Spindle & Y Axis. Smooth Control 5000 rpm HQR-MSY 3 Axis

Max swing (upper turret): 320 mm
Max swing (lower turret): 270 mm
Max machining diameter (upper turret): 300 mm
Max machining diameter (lower turret): 172 mm
Distance between chuck jaw faces: 620 mm
Bar work capacity: 65 mm
Upper turret travels X/Y/Z: 175/100/520 mm
Lower turret travels X/Y/Z: 111/70/580 mm
Main spindle speed: 5000 rpm
Main spindle nose: A2-6
Main spindle bore: 76 mm
Second spindle speed: 6000 rpm
Second spindle nose: A2-5
Second spindle bore: 61 mm
Second headstock stroke (W axis): 625 mm
Second headstock positioning speed (W axis): 30,000 mm/min
Rapid traverse (C axis): 555 rpm
Turret type: 12-position drum turret (VDI)
Number of tools: 12
Turning tool shank: 20 mm
Boring bar shank diameter: 32 mm
Turret indexing time: 0.2 s / 1 step
Rotary tool spindle speed: 6000 rpm
Milling/drilling capacity: Drill 16 mm, Endmill 16 mm, Tap M16 x 2.0
Feedrate (upper turret) X/Y/Z: 30,000/26,000/40,000 mm/min
Feedrate (lower turret) X/Y/Z: 24,000/20,000/40,000 mm/min
Main spindle motor (30min/cont.): 15 kW / 11 kW
Second spindle motor (30min/cont.): 11 kW / 7.5 kW
Rotary tool spindle motor (10 min): 5.5 kW
Power requirement: 39.2 kVA
Coolant tank capacity: 251 litres
HAINBUCH collet chuck system with collets
Selection of live tooling
Cutting time: 380 hours
Machine dimensions L x W x H: 2862 x 2290 x 2413 mm
Machine weight: 9100 kg
