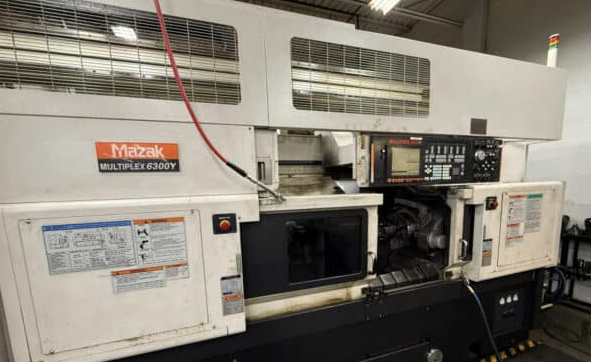

Mazak Control Mazatrol Fusion 640T 4,000 RPM MULTIPLEX 6300Y with GL300F 2 Axis

Maximum Swing 16.93”
Standard Cutting Diameter 13.0”
Maximum Cutting Diameter 16.93”
Maximum Cutting Length Chuckwork 8.86”
Maximum Cutting Length Shaftwork 25.59”
Distance Between Spindle Faces Max (Both Heads @ Home Position) 57.09”
Distance Between Spindle Faces Min 9.82”
Spindle Nose A2-8
Spindle Bore 3.46”
Maximum Bar Diameter 3.0”
Spindle Speed 4,000 RPM
Spindle Indexing (C-Axis) 0.001 deg./360,000 Positions
Spindle Horsepower 30 HP (AC)
Spindle Torque 441.34 ft.-lbs.
Control Mazatrol Fusion 640T
Chip Conveyor
(2) 12” Chucks
GL300F/Rotary Type
