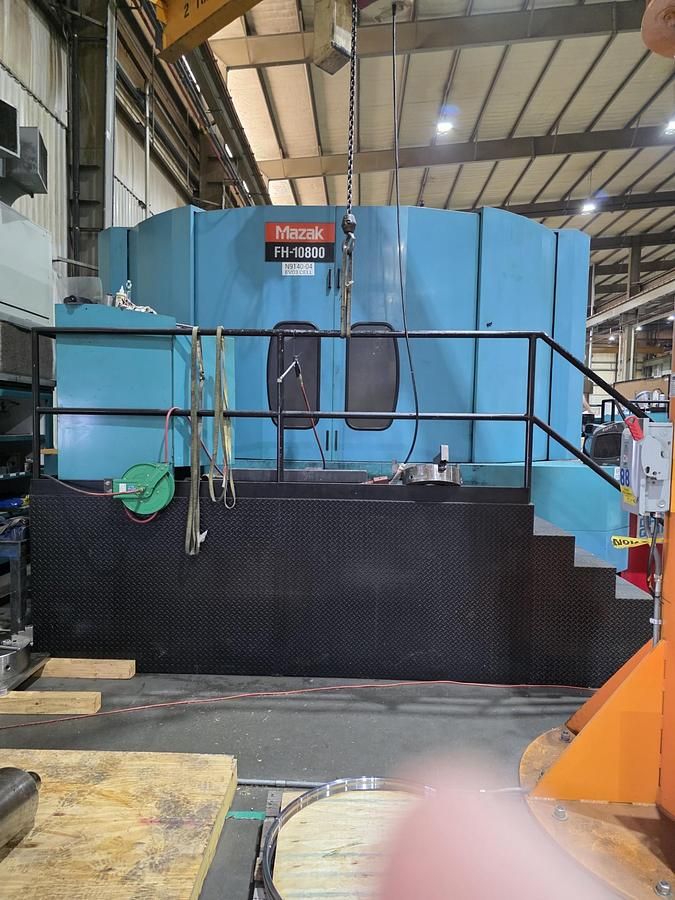

Mazak FH 10800 4 Axis

X-axis travel: 66.93 in
Y-axis travel: 55.12 in
Z-axis travel: 55.12 in
NC rotary table: 360,000 positions
Control: Mazatrol PC-Fusion CNC 640M
Windows 2000 operating system
Performance CNC
Inch/metric conversion
Through-spindle coolant: 213 psi
High-pressure coolant preparation: 1000 psi
Probe preparation: MMS-B OMP60
Chip conveyor: hinge type for steel
Number of pallets: 2
Spindle speed: 7,000 rpm
Spindle power: 50 hp (30 min)
Spindle power: 40 hp (continuous)
Spindle torque: 867.6 ft-lbs
Spindle nose: CAT 50
Number of spindle ranges: 2
Tool capacity: 40 tools
Pallet size: 39.4 x 39.4 in
Distance top of pallet to spindle nose: 3.94 in min
Distance top of pallet to spindle nose: 59.06 in max
Distance pallet center to spindle nose: 7.87 in min
Distance pallet center to spindle nose: 62.99 in max
Machine weight: 66,138 lbs
