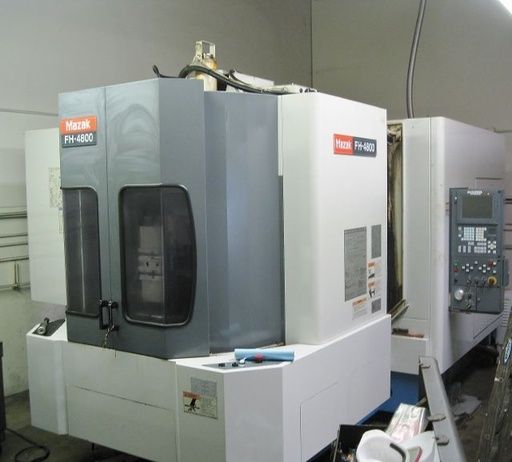

Mazak FH-4800 4 Axis

Mazak FH-4800
2000

Control: Mazatrol PC-Fusion 640M
Pallet size: 15.75" x 15.75"
Number of pallets: 2
Full 4th axis contouring: 0.001"
Table load capacity: 880 lbs
X-axis travel: 22.05"
Y-axis travel: 24.02"
Z-axis travel: 22.05"
Spindle nose: CAT 40
Spindle speed: 12,000 RPM
Spindle motor (10 min / 30 min / cont.): 30 HP
Distance spindle center to table top: 1.97" – 25.98"
Rapid traverse: 1,968 IPM
Spindle torque: 195 ft/lbs
Max tool diameter: 5.91"
Max tool length: 14.17"
Max tool weight: 26.5 lbs
Machine dimensions (LxWxH): 164" x 106" x 104"
Machine weight: 20,723 lbs
Rigid tapping
Coolant through spindle
Chip conveyor
All available tooling
All available manuals
