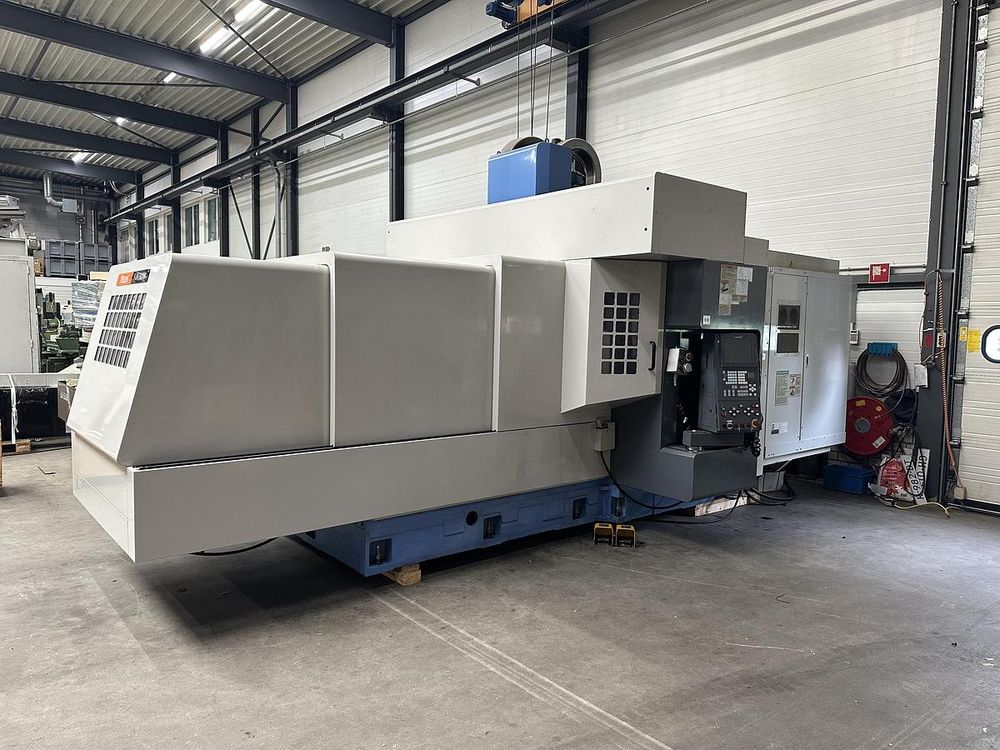

Mazak FJV-50/80 3 Axis

MAZAK FJV-50/80
2003

Control: Mazatrol PC Fusion 640 M
X-axis travel: 2000 mm
Y-axis travel: 1150 mm
Z-axis travel: 585 mm
Table size (LxW): 1000x2240 mm
4th/5th axis: Not available
Spindle taper: BT50
Spindle speed range: 0 – 6000 rpm
Tool magazine capacity: 30 tools
Max. table load: 4000 kg

Equipped with chip conveyor
Equipped with Renishaw MP10 workpiece probe
Custom-made machine table for easy workpiece clamping
Total machine weight: approx. 25,000 kg
Transport dimensions (main unit): 620x319x307 cm, weight approx. 19,000 kg
Coolant tank dimensions: 300x110x70 cm, weight 210 kg
Magazine dimensions: 500x100x190 cm, weight approx. 1450 kg
Chip conveyor dimensions: 400x100x160 cm, weight 220 kg
Machine removed from production in working condition
Currently powered off but set up in stock
Images may show both current and previous installation setup
