Mazak H800 4 Axis

Ref : 2728269-3-GO
Condition : Used
Manufacturer : Mazak
Model : H800
Nb Of Axis : 4 Axis
Year(s) : 1996
Quantity : 1
Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

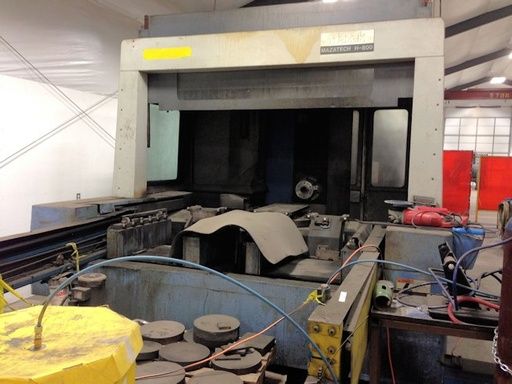

Mazak H800
1996

Pallet table size: 31.5" x 31.5"
Number of pallets: 2
Maximum workpiece size: 45.3" x 45.3"
Table load capacity: 4,840 lbs
X-axis travel: 49.2"
Y-axis travel: 39.4"
Z-axis travel: 33.5"
Table indexing: 1 degree
Distance from spindle center to table top: 1.77" – 41.3"
Distance from spindle nose to table center: 9.84" – 43.3"
Rapid traverse (X/Y/Z): 709 IPM
Spindle speed: 4,500 RPM
Maximum spindle torque: 790 ft-lbs
Tool magazine capacity: 80 ATC
Tool shank configuration: CAT 50 taper
Max tool diameter: 5.12"
Max tool weight: 59.4 lbs
Main motor: AC 35 HP
Machine weight: 47,400 lbs
Mazatrol M-Plus CNC control
Thru spindle coolant (100 PSI)
Chip conveyor
214 hours since new spindle installed
Machine is dirty but in good running condition
Can be put back under power
