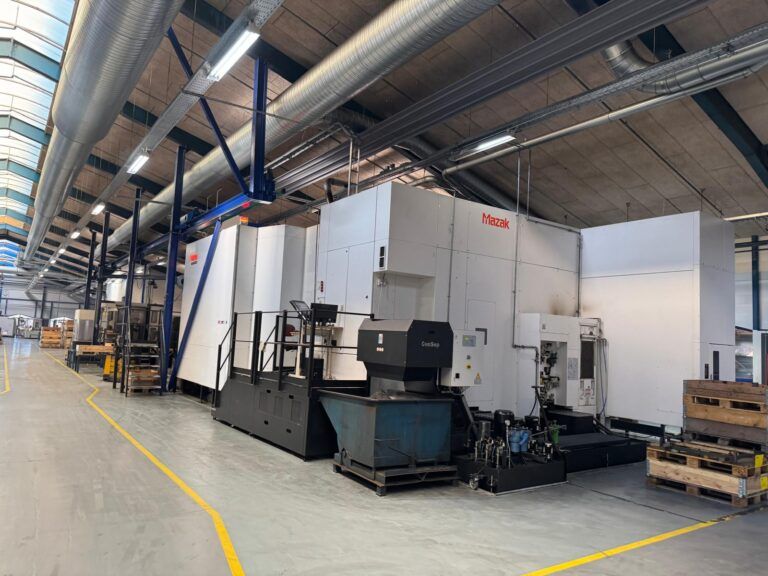

Mazak HCN-12800 4 Axis

Travel X: 2200 mm
Travel Y: 1600 mm
Travel Z: 1850 mm

Control: Mazatrol Smooth G
Overload detection
G00 slope constant
Automatic pecking cycle with load detection
Synchronized thread cutting
Orbit turning function
Engraving function
Mazak API
Air through spindle with lubrication
Air blow workpiece
Monitoring system with touch probe
Setup and inspection system
Signal lamp

Rotary table indexing: 0.0001°
Rotary table positions: 3600000

Spindle power: 37 kW
Spindle speed: 8000 rpm
Spindle torque: 1218 Nm
Tool taper: SK50

Tool magazine capacity: 160 tools

Pallet changer: 2 pallets
Pallet size: 1250 x 1250 mm

Distance spindle nose to pallet center: 250–2100 mm
Distance spindle centerline to pallet surface: 100–1700 mm

Coolant system: Mayfran Concep 2000 II
Chip conveyor
Drum coolant filter
High pressure pump: 70 bar, 20 L/min
Pressure stages: 15 / 50 / 70 bar
