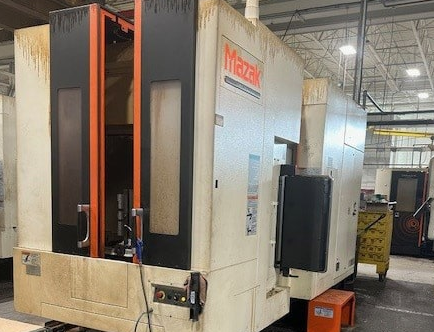

Mazak HCN-4000II 4 Axis

Mazak HCN-4000II
2012

Pallet Size………………………… 15.75” x 15.75”
X-Axis TRAVEL………………………. 22.05”
Y-Axis TRAVEL………………………. 24.8”
Z-Axis TRAVEL………………………. 25.20”

Dis from Spindle Center to Top of Pallet. 3.15-27.95”
Dis from Spindle Nose to Pallet Center… 2.76-27.95”
Maximum Table Load………………….. 881 lbs
Maximum Workpiece Height…………….. 35.43”
Maximum Workpiece Diameter…………… 24.80”

Spindle Nose……………………….. CAT40 Big Plus
Spindle RPM………………………… 35-18,000 RPM
Spindle Horsepower (30 Min/Cont)……… 40 HP/33.5 HP

Magazine Capacity…………………… 80
Chip-to-Chip Time (Approx.)………….. 2.7 sec
Maximum Tool Diameter……………….. 3.74”
Max.Tool Dia.W/Adjacent Pockets Empty…. 5.91”

Maximum Tool Length / Weight…………. 16.54” / 26 lbs
Rapid Traverse Rate…………………. 2362.2 IPM
Maximum Cutting Feedrate………… 2362.2 IPM
Machine Dimensions……………………. 175” x 85” x 110”
Machine Weight……………………… 20,943 lbs

Equipped With (subject to buyer verification):
Mazatrol Matrix Nexus Control
80 Tool Chain Magazine
Spindle Speed 18,000 RPM (AC45HP)
PMC (w/New Cell-Controller) Prep-B
NC Rotary Table (360,000 Positions)
2-Pallet Changer
2PC/Change to Location Bore Tap Pallets
Auto Power Off (Breaker Trip)
