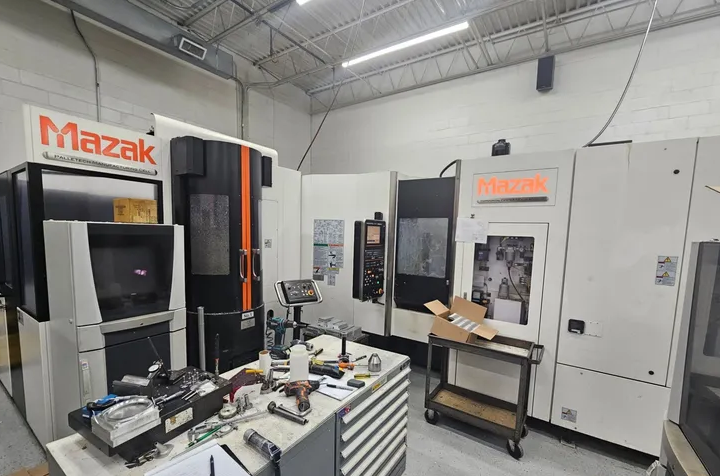

Mazak HCN-4000III 4 Axis

X-Axis Travel 22.05"
Y-Axis Travel 24.8"
Z-Axis Travel 25.2"
Spindle Power 40 hp
Spindle Speed 18,000 RPM
Spindle Taper CAT 40
Pallet Width 15.75"
Pallet Length 15.75"
Control Mazatrol Matrix Nexus 2
6 Pallet Pool Palletech System
1 Loading Station
Method of Tool Selection Shortest Path
Table Indexing Time 1.3 sec per 90°
Rapid Traverse Rate 2,362 IPM
Distance from Pallet Center to Spindle Nose 2.8" - 28.0"
Spindle Bearing 2.75"
Max Tool Diameter/Length/Weight 6.7"
Tool Change Time 2.4 sec
Coolant Pump Motor 50/60 Hz
Renishaw Probe
Renishaw Tool Presetter
Upgraded Hinge Type Chip Conveyor
Full 4th Axis
300 PSI Coolant Thru Spindle
Machine Dimensions 87" x 207" x 106.8" H
Machine Weight 23,584 lbs
