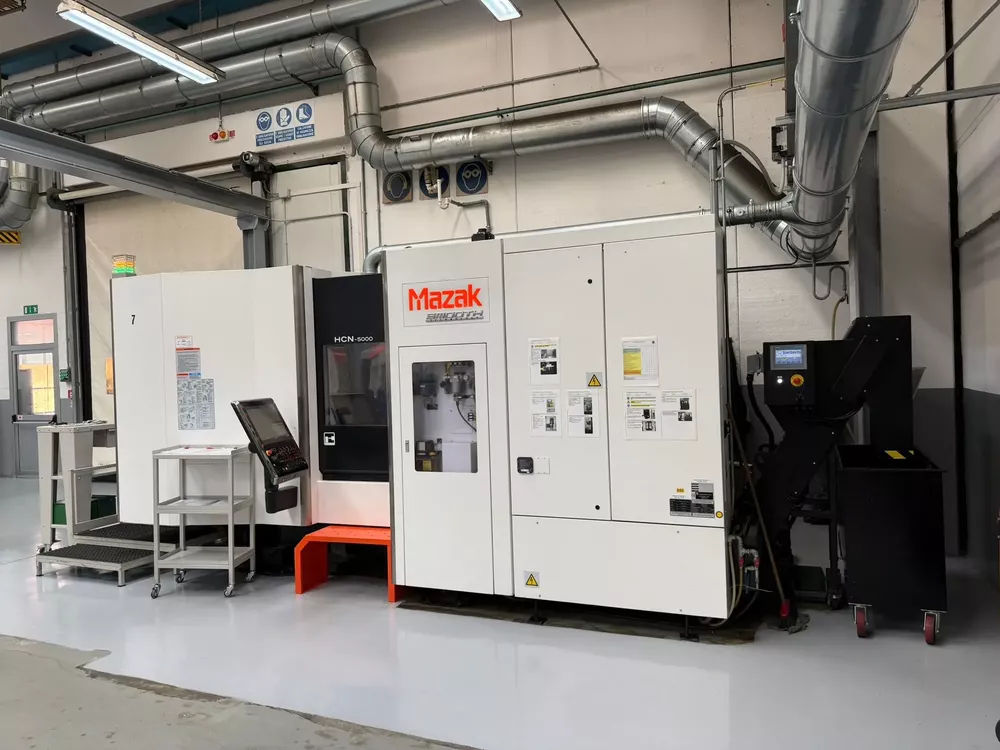

Mazak HCN-5000 4 Axis

X-axis travel: 730 mm
Y-axis travel: 730 mm
Z-axis travel: 800 mm
Distance spindle nose to pallet center: 70–870 mm
Distance spindle centerline to pallet surface: 100–830 mm
Max. workpiece diameter: 800 mm
Max. workpiece height: 1000 mm
Pallet changer: 2 pallets
Pallet size: 500 × 500 mm
Max. load on pallet: 700 kg
NC indexing table: 0.001°
Indexing positions: 360,000
Control: Mazatrol Smooth G
Spindle drive power: 35/26 kW
Max. spindle speed: 18,000 rpm
Spindle taper: SK40
Coolant through spindle
Tool magazine: 80 tools

Air blowing workpiece
Preparation Mazak Monitoring System B
Renishaw system
Swarf conveyor
70 bar high pressure pump
Coolant system with paper belt filter
