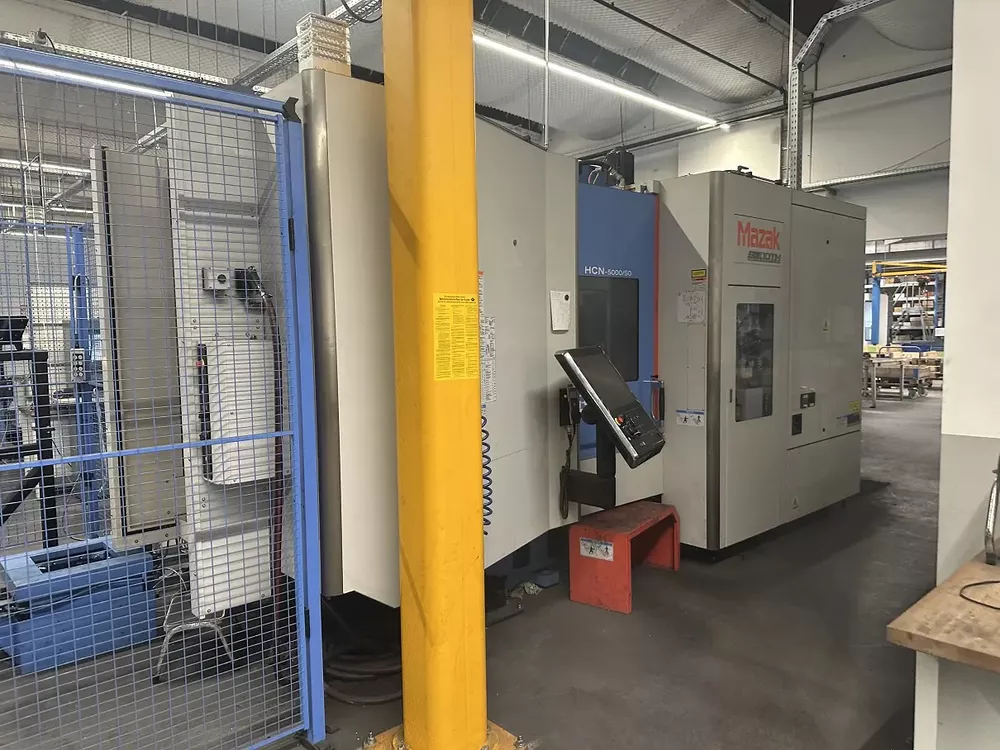

Mazak HCN-5000/50 4 Axis

X-axis travel 730 mm
Y-axis travel 730 mm
Z-axis travel 800 mm
Distance spindle nose to pallet center 70–830 mm
Distance spindle centerline to pallet surface 100–830 mm
C-axis NC rotary table 0.0001° x 3.600.000
Control Mazatrol Smooth G
Pallet changer 2 pallets
Pallet size 500 x 500 mm
Maximum pallet load 700 kg
Milling spindle power 30 kW
Milling spindle speed 10,000 rpm
Tool magazine 120 places
Tool holder SK-50
Renishaw NC4 Tool laser
Mazak Monitoring B
Renishaw RMP600
Electronic handwheel
Automatic door
Robot interface Advance/Profibus
Preparation for hydraulic clamping device
Pallets with centering and threaded holes
Overload detection
Workpiece zero offset under EIA/ISO
Mazak APi
Smooth Link
Synchronized thread cutting
Auto pecking cycle with load detection
Engraving function
Maximum program size 8 MB
G00 slope constant
Macro for correction measurement B-axis
Macro for clamping direction correction EIA/ISO
Smooth Set and Inspect
Tool breakage (TBR) & MAZAK Monitoring System (MMS) EIA/ISO program macro
Knoll coolant system KF400/2300
Paper-belt filter
70 bar high pressure pump
Knoll chip conveyor
Robot cell Cellro Elevate E-110-165
Elevate W 2000 mm – H 4000 mm
Fanuc robot R-2000 165F iC
Maximum robot payload 165 kg
Maximum handling weight 90 kg
Automatic gripper changing system
Manual gripping force control
I/O module gripper magazine
Internal valve terminal
Modem for remote maintenance
Security fence with door and request button
PREMIUM controls
High-quality dialog control via touchscreen
High Sensitive Collision Detection
Auto Singularity Avoidance
SoftFloat
DCS Position / Speed Check Function
Workpiece measuring station SPC-Trays
Air outlet station
Various trays 1600 x 550 mm
Loading with pull-out tray
