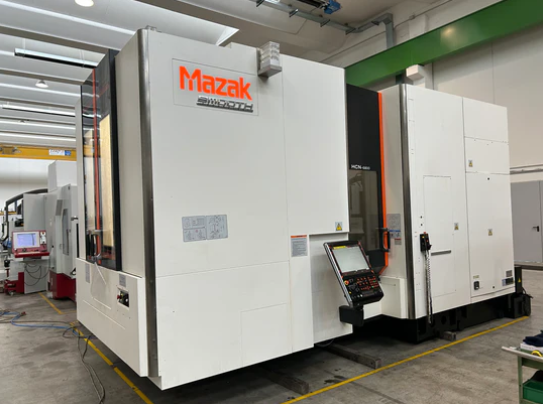

Mazak HCN 6800 4 Axis

Longitudinal Travel X 1050 mm
Transversal Travel Y 900 mm
Vertical Travel Z 980 mm
Workpiece Height 1300 mm
Workpiece Diameter 1050 mm
Table Load Max 1500 kg
Table Divisions B 0.001°
Number of Tables/Pallets 2
Pallet Size 630 × 630 mm
Tool Magazine Positions 120
Tool Diameter Max 125 mm
Tool Diameter with Free Adjacent Pockets 250 mm
Tool Length 630 mm
Max Tool Weight 30 kg
Spindle Nose ISO 50
Spindle Nose to Table 100–1000 mm
Spindle Speeds 0–10000 t/min (stepless)
Torque Max 350 Nm
Spindle Power 30 / 37 kW
Rapid Traverse 60 m/min
Voltage 3×400 V 50 Hz
Machine Length 6900 mm
Machine Width 4210 mm
Machine Height 3400 mm
Machine Weight 21500 kg

High-Pressure Coolant 50 bar
Renishaw Tool Setter
Renishaw Touch Probe
Chip Conveyor
Electronic Handwheel
