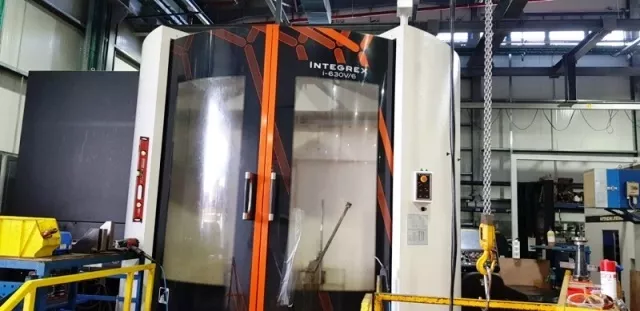

Mazak INTEGREX i-630V6 II 3 Axis

MAZAK INTEGREX i-630V6 II
Year: 2017

X-axis travel: 56.1"
Y-axis travel: 41.34"
Z-axis travel: 41.34"
Spindle speed: 10,000 RPM
Tool capacity (ATC): 43
Main spindle motor: 50 HP
Full 5-axis contouring
C-axis table rotation: 0.0001° increment, 360,000° contouring
Tool probe / auto tool length measurement: Yes
Multiple pallets: Yes
Control: CNC (MAZATROL SMOOTHX)
Maximum machining diameter: 41.34"
Maximum machining length: 39.37"
Turning spindle chuck size: 32"
Maximum spindle speed (turning): 550 RPM
Milling spindle B-axis travel: 150°
Magazine capacity: 43 tools
Motor output (40 ED rating): 50 HP / 37 kW
C-axis resolution: 0.0001 degree increment
B-axis resolution: 0.0001 degree contouring
Tool eye (automatic)
Cylindrical and polar coordinate programming (EIA)
Milling spindle synchronous tapping (without tool)
Chip conveyor rear right disposal (CONSEP-1)
Tool radius compensation / 5-axis
Signal tower with 3 color lights
Touch sensor (radio type)
630 mm square location bore tap pallet (1 piece)
EIA dynamic compensation 2
Maximum program size: 8 MB
Mill turning (MAZATROL)
Workpiece air blast
5-axis machining package for SMOOTHX
80 tool magazine (standard tooling package)
High-pressure coolant through spindle system (15 kg / 213 PSI)
6-month warranty
Diameter 800 mm location bore tap pallet (1 piece)
High torque milling spindle speed 5,000 RPM
EIA / ISO functions simultaneous 5 axes
Tool tip point control / simultaneous 5 axes
Fine spline interpolation (EIA)
5-axis spline interpolation
Set of adjusting tools
Foundation kit (leveling blocks)
MAZAK standard color (white/black)
Worldwide safety measures
Power transformer for other markets
19" color LCD touch screen
2 pallet changer
Flood coolant system
Work light
Spindle chiller unit
Preparation for MAZAK monitoring system (RMP600)
MAZA-CHECK
Absolute positioning system (linear axes)
Safety cover for 2 pallet changer
Manual pulse generator (wired/detachable)
Manual rotation of 2-piece loading station
Hydraulic pressure interlock
Coolers for ball screws (X, Y, Z axes)
Roller guides
Air through spindle system (spindle stop)
Niagara coolant (recommended equipment)
Operator door interlock with lock switch
Auto power on/off with warm-up
ATC auto recovery
APC auto recovery
Number display on MG panel (no tool ID)
Enclosed coolant & splash cover
Smooth standard software
User macro (600 common variable pairs)
MAZAK tapping/boring tornado (MAZATROL)
MAZAK tapping/boring tornado (EIA/ISO)
EIA/ISO code put function (standard)
G37 automatic tool length measurement (laser rotary tool measurement)
Additional EIA/ISO functions (required for EIA/ISO)
Inverse time feed
Sequence number comparison stop function
Tilted working plane
Background tool path check
3-D coordinate conversion
Additional workpiece coordinate systems (300 pairs)
Thread cutting function
Polar coordinates put function (EIA)
Direct entry of drawing dimensions
EIA pattern cycle (grid, arc)
USB interface (1 port)
LAN port
SD memory interface (1 port) + USB interface (1 port)
Relocation detector
