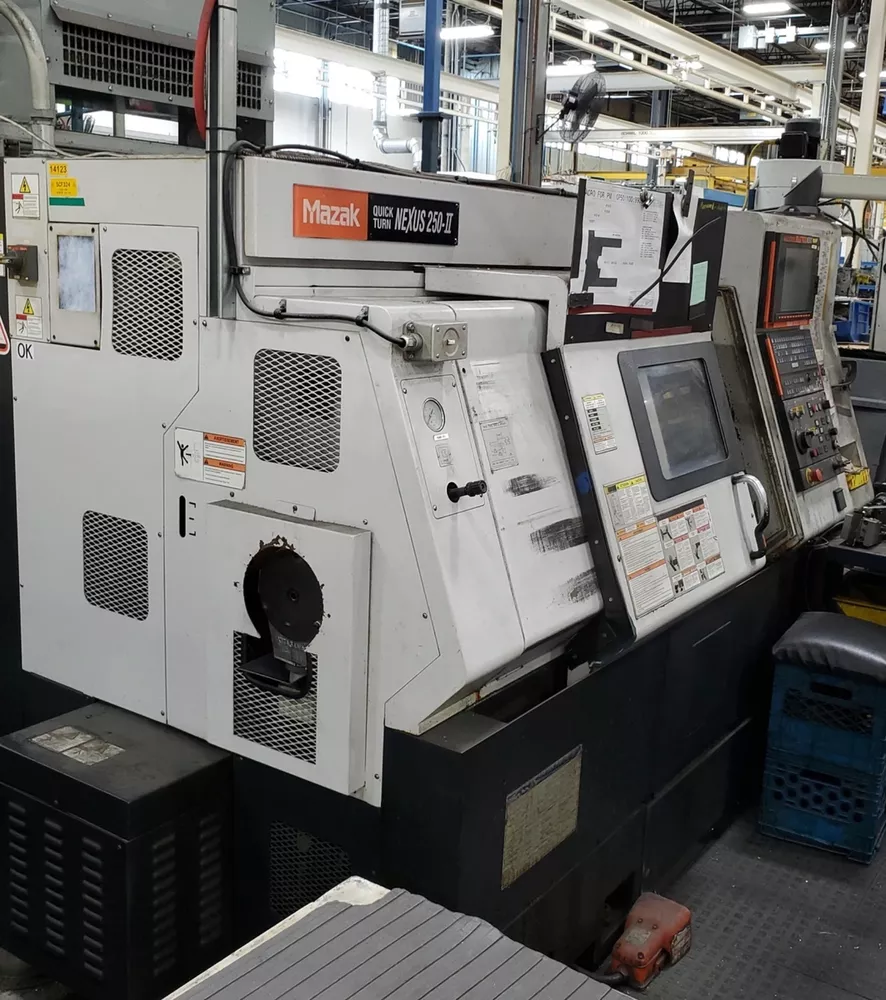

Mazak MATRIX CNC Control Variable Speed NEXUS QTN 250 II 2 Axis

Year: 2009

X Axis Travel: 9″
Z Axis Travel: 22″
Rapid Traverse X: 1181 IPM
Rapid Traverse Z: 1299 IPM
CNC Control
MATRIX CNC Control
EIA/ISO Programming
Auto Tool Eye
USB Port
User Macro
Tool Life Monitoring
Absolute Positioning System
Swing Over Bed: 26.5″
Turning Diameter: 14.75″
Machining Length: 22.7″
Distance Between Centers: 22″
Bar Capacity: 3″
Spindle Speed: 4,000 RPM
Spindle Motor: 35 HP
Spindle Nose: A2-8
Spindle Bore: 3.6″
10″ Hydraulic 3 Jaw Chuck
Turret Capacity: 12 Stations
Programmable Tailstock
Tailstock Travel: 17.6″
Tailstock Taper: MT4
Machine Weight: 12,000 lbs
Chip Conveyor
Tool Holders
Manuals
Transformer
