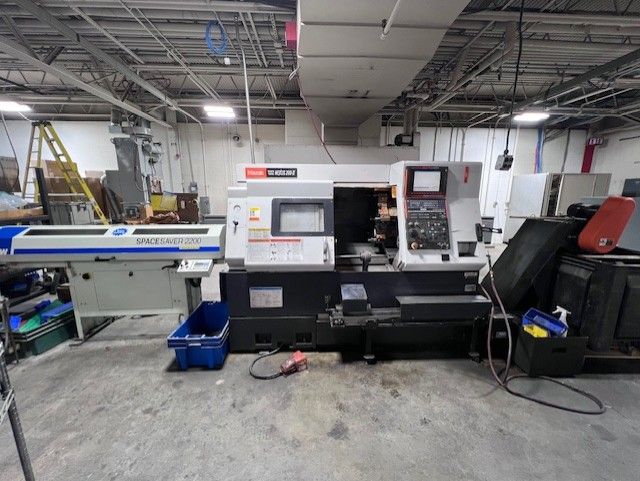

Mazak MATRIX NEXUS 5000 RPM QTN200-II w. SMW Spacesaver Barfeed 2 Axis

Control: MATRIX NEXUS
Max Swing: 24.02"
Swing Over Carriage: 13.78"
Max Machining Diameter: 13.78"
Max Machining Length: 20.16"
Bar Work Capacity: 2.56"
X-Axis Travel: 7.5"
Z-Axis Travel: 21.125"
Chuck Size: 8"
Spindle Speed: 5000 RPM
Number of Speed Ranges: 1-Steppless
Spindle Nose: A2-6
Spindle Bore: 2.99"
Main Spindle Motor: 35/30 HP
Turret Type: 12 Position Drum Turret
Number of Tools: 12
Turning Tool Shank: 1"
Boring Bar Shank Diameter: 1-1/2"
Rapid Traverse X/Z: 1181/1299 IPM
Tailstock Stroke: 21.75"
Tailstock Taper: MT#5
Power Requirements: 40.3 kVA
Approx. Weight: 10,850 Lbs.
Collet Chuck: Yes
Parts Catcher: Yes
Tailstock: Yes
Chip Conveyor: Yes
Barfeed: SMW Spacesaver 2200 Magazine
