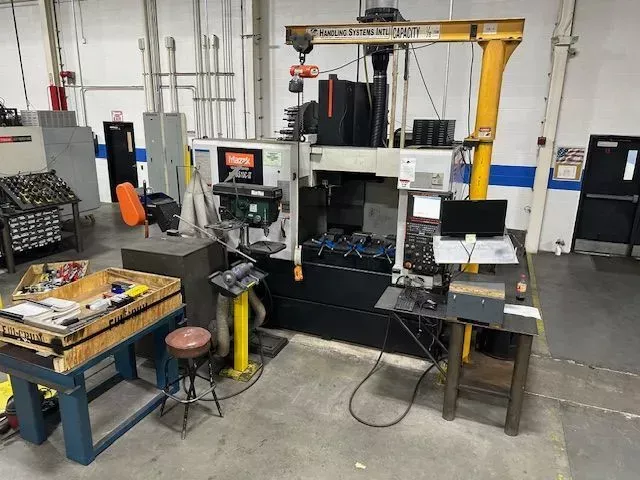

Mazak MAZAK MAZATROL MATRIX CNC COLOR CONTROL 12,000 RPM Nexus VCN 510CII 3 Axis

Mazak Nexus VCN 510CII
2009

Number of Tables / Pallets: 1
Table Size: 51.18" x 21.65"
Weight on Table: 2,540 lb
Spindle Nose to Table Top Distance: 5.9" ~ 25.98"
X-Axis Travel: 41.34"
Y-Axis Travel: 20.08"
Z-Axis Travel: 20.08"
Rapid Traverse Rate X: 1,417 in/min
Rapid Traverse Rate Y: 1,417 in/min
Rapid Traverse Rate Z: 1,417 in/min
Spindle Speed: 12,000 RPM
Spindle Taper: 40
Main Motor Power: 25 hp
Tool Diameter: 3.5", 4.92"
Tool Length: 13.78"
Tool Weight: 17.6 lb
Machine Weight: 15,300 lb
Control: MAZAK MAZATROL MATRIX CNC COLOR CONTROL
All Available Manuals
Ethernet Port
Chip Conveyor
EIA
Spiral
EIA 3D Compensation
Rotation
Geometric
Scaling
External Data I/O
Thread
Inverse Time
Auto ATLM
Polar Coordinate Input
Comparison Stop
G54.1
Sync Mill Tap
Variable 600 Macro
EIA Helical Tap Cycle
EIA Pattern Cycle
Tilted Work Plane
Pitch Error Compensation
Automatic Tool Length Measurement
Renishaw TS27R Touch Sensor
Mist Collect System
Mazak High Pressure Through Spindle Coolant 213 PSI
Pedestal Grinder
Drill Press
Jib Crane
3 Kurt Vices
30 CAT 40 Tool Holders
Work Bench
CRT and Keyboard
All Perishables, Drills, Inserts, Tooling Must Go
