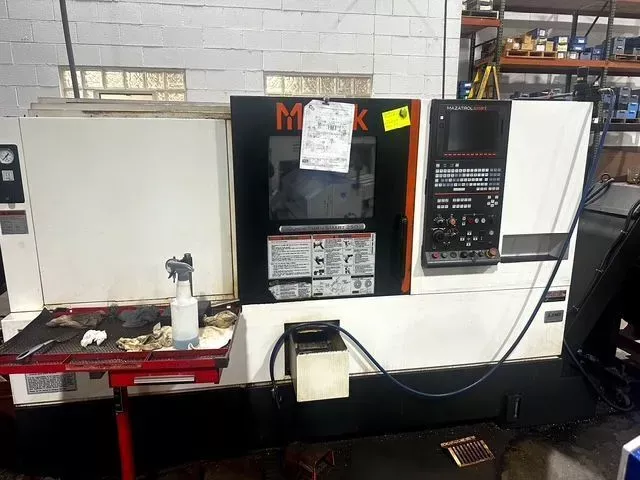

Mazak Mazak Mazatrol Matrix CNC color control 5000 RPM NEXUS QTN 200 II 2 Axis

MAZAK NEXUS QTN 200 II
2007

Swing over bed 24"
Distance between centers 20.16"
Chuck size 8"
Spindle nose A2-6
Spindle bar capacity 2"
Max turning diameter 13.5"
Spindle speed range 50-5000 RPM
Spindle horsepower 35 HP AC
Spindle bore diameter 2.4"
Turret configuration 12 tools
Turret type bolt-on
Turret index time (1 pos/full) 0.2 / 0.6 sec
X-axis travel 7.5"
Z-axis travel 21"
X-axis rapid traverse 1181 IPM
Z-axis rapid traverse 1299 IPM
Tailstock travel 15"
Tailstock quill travel 4.1"
Tailstock quill diameter 3.7"
Tailstock taper MT 4
Programmable tailstock yes
Bar capacity 2"
Number of axes 2
Live tooling no
Sub spindle no
Control Mazak Mazatrol Matrix CNC color control
Machine weight 10,219 lbs
Mazatrol Matrix conversational control
Automatic parts catcher
Color LCD
Auto tool presetter
8" 3-jaw hydraulic chuck
Standard tooling package
Operator door interlock
Chip conveyor
All available manuals
Barfeed interface
