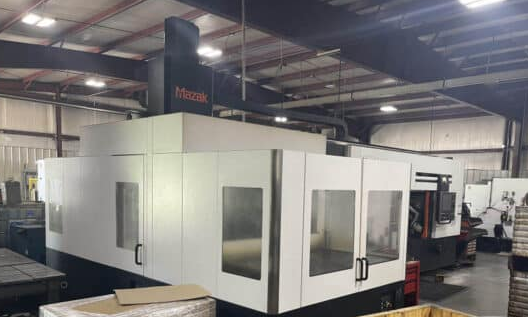

Mazak Mazak Smooth G 4000 RPM MULTIPLEX W-300Y WITH GL-200 ROBOT 5 Axis

X-Axis Travel: 310 mm (12.125″)
Z-Axis Travel Z1: 615 mm (24.125″)
Z-Axis Travel Z2: 615 mm (24.125″)
Y-Axis Travel: ±77 mm (±3″)
C-Axis Travel: 360°

Rapid Traverse X-Axis: 30000 mm/min (1181 IPM)
Rapid Traverse Y-Axis: 14000 mm/min (551 IPM)
Rapid Traverse Z-Axis: 28000 mm/min (1102 IPM)
Rapid Traverse C-Axis: 555 RPM

Spindle Speed: 4000 RPM
Spindle Motor Power (40% ED/Cont.): 26 kW (35 HP) / 22 kW (30 HP)
Spindle Torque: 808 Nm (596 ft.lbs)
Spindle Nose: A2-8
Spindle Bore: 91 mm (3.58″)
Milling Capacity (Drill): 25 mm (0.98″)
Milling Capacity (End Mill): 25 mm (0.98″)
Milling Capacity (Tap): M24 x 3.0 (1 UNC)

Control: Mazak Smooth G
Tool Setter: 2 Tool Presetters
Coolant System: 213 PSI High Pressure Coolant Pumps
Bar Capacity: 80 mm (3.15″)
Swing: 430 mm (16.93″)
Max Machining Diameter: 430 mm (16.93″)
Max Machining Length: 225 mm (8.86″)
Distance Between Spindles (Z Home): 1470 mm (57.84″)
Max Workpiece Weight (Chuck): 450 kg (992 lbs)

Min Spindle Indexing Increment: 0.0001°
Number of Spindles: 2
Number of Turrets: 2
Turret Type: 12 Position Drum Turret × 2
Tool Shank Holder: VDI
Tool Shank Height: 25 mm (1″)
Boring Bar Shank Diameter: 50 mm (1.97″)
Turret Indexing Time (1 Step): 0.24 sec
Rotary Tool Spindle Speed: 5000 RPM
Rotary Tool Motor Power (25% ED): 7.5 kW (10 HP)

Power Requirement: 78.5 kVA
Machine Height: 2170 mm (85.4″)
Floor Space Requirement: 4260 mm × 2385 mm (167.7″ × 93.9″)
Machine Weight: 13800 kg (30432 lbs)
Chip Conveyor: LNS Turbo 250 Rear Chip Conveyor
Parts Conveyor: Parts Exit Conveyor
Chucks: (2) 12″ Kitagawa 3-Jaw Hydraulic Chucks
Included Tool Holders: All available live and static tool holders
Robot: GL200/2P Conveyor/D3-Hand
