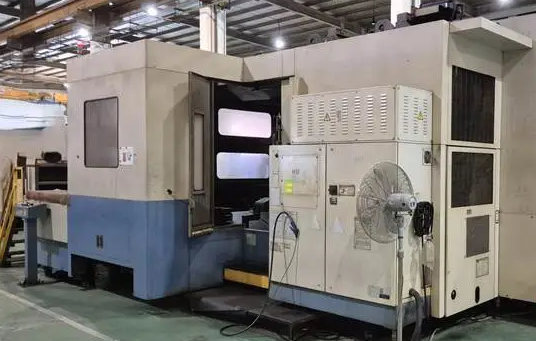

Mazak MAZATECH FH-1080 4 Axis

X-Axis Travel: 1,640.8 mm
Y-Axis Travel: 1,295.4 mm
Z-Axis Travel: 1,219.2 mm
X-Axis Travel: 1,700 mm
Y-Axis Travel: 1,400 mm
Z-Axis Travel: 1,525 mm
Rapid Traverse (X/Y/Z): 40,000 mm/min
Rapid Traverse: 1,575 IPM
Pallet Size: 1,000 x 1,000 mm
Maximum Workpiece Diameter: 2,050 mm
Maximum Workpiece Height: 1,600 mm

Control: CNC
ATC Capacity: 80 Tools
Tool Storage Capacity: 40 / 80 / 120 Tools
Tool Change Time (Chip to Chip): 6.5 sec
Pallet Change Time: 16 sec

Spindle Speed: 12,000 RPM
Spindle Power: 37.3 kW
Spindle Motor (30 min): 50.0 hp
Spindle Motor (Continuous): 30.0 kW
Spindle Taper: CAT 50 / BT 50 / HSK-A100
Maximum Torque: 1,162 Nm

Pallet Load Capacity: 3,000 kg
Max Tool Diameter: 135 mm
Max Tool Length: 650 mm
Max Tool Weight: 30 kg

Machine Weight: 30,500 kg
Floor Space Requirement: 5,860 x 8,360 mm
Machine Height: 4,310 mm
