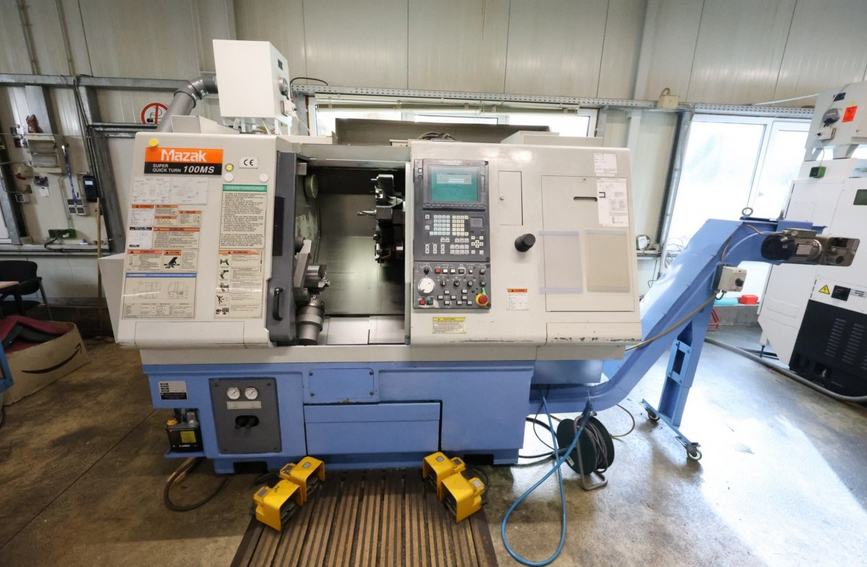

Mazak Mazatrol 640 T 6000 rpm Super Quick Turn 100 MS 3 Axis

X-travel: 185 mm
Z-travel: 360 mm
B-travel: 460 mm
Control: Mazatrol 640 T
Maximum swing diameter: 550 mm
Maximum turning diameter: 280 mm
Workpiece weight max.: 200 kg
Bar capacity: 51 mm
Main spindle speed: 35–6000 rpm
Milling head speed: 25–4500 rpm
Rapid traverse X/Z: 30/33 m/min
Rapid traverse B axis: 30 m/min
Tool turret: 12 positions
Machine weight: 4100 kg
Chuck size: 6 inches
Standard turning diameter: 221 mm
Distance spindle nose to turret edge: 80–535 mm
Main spindle bore: 61 mm
Counter spindle speed: 35–6000 rpm
Counter spindle bore: 52 mm
External turning tool size: 20 mm
Internal turning tool size: 32 mm
Milling drill size: 16 mm
Milling tap: M12
End mills: 16 mm
Equipment: Tool holders
Equipment: Tools
Equipment: Powered tools
Equipment: Turning tool holders
Equipment: Coolant system
Equipment: Chip conveyor
Documentation included
