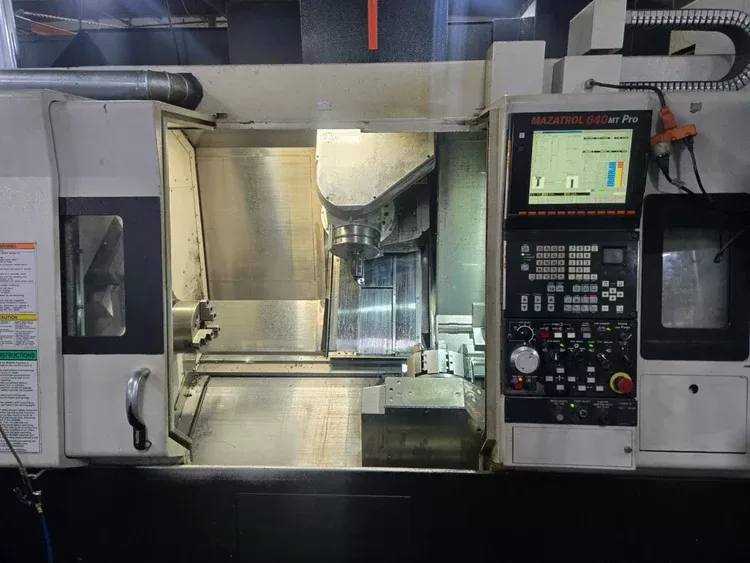

Mazak Mazatrol 640MT Pro CNC Color Conversational Control 5000 RPM INT200IIIST 6 Axis

Mazak INT200IIIST
2005

Swing Over Bed: 26″
Turning Diameter: 26″
Turning Diameter L.TRT.: 10.6″
Turning Length: 40″
Chuck Size 1: 8″
Chuck Size 2: 8″

Spindle Nose 1: A2-6
Spindle Nose 2: A2-6
Spindle Bore Diameter 1: 2.99″
Spindle Bore Diameter 2: 2.99″

Bar Capacity 1: 2.5″
Bar Capacity 2: 2.5″

Spindle Speed 1: 5000 RPM
Spindle Speed 2: 5000 RPM
Spindle Horsepower 1: 30 HP
Spindle Horsepower 2: 25 HP

B-Axis Head Indexing: ±225°
B-Axis Milling Spindle Speed: 12000 RPM
B-Axis Milling Spindle Taper: KM63
B-Axis Milling Spindle Horsepower: 20 HP

ATC for Milling Spindle: 40
Tool Diameter: 3.54″ / 4.92″
Tool Length: 11.8″
Tool Weight: 22 lbs

X-Axis Travel X1: 22.8″
X-Axis Travel X2: 5.9″
Z-Axis Travel Z1: 41.14″
Z-Axis Travel Z2: 38.98″
Y-Axis Travel Y1: ±3.15″
C-Axis Indexing 1: 0.0001°
C-Axis Indexing 2: 0.001°
W-Axis Travel (Sub Spindle): 41.34″

Rapid Traverse X1: 1496 IPM
Rapid Traverse X2: 1496 IPM
Rapid Traverse Z1: 1023 IPM
Rapid Traverse Z2: 1023 IPM
Rapid Traverse Y1: 1496 IPM
Turret Tool Positions Lower: 9
Machine Weight: 20,660 lbs

Mazatrol 640MT Pro CNC Color Conversational Control
EIA/ISO Program Capability
B-Axis Angle Positioning Turning
Background Path Check
Multi Tool Holder
Flash Tool
Shape Compensation
Y-Axis Control
Synchronized Milling and Tapping
Thread Start Point Compensation
Direct Drawing Size Input
User Macro
600 Macro Variables
User Macro Interrupt
Work Coordinate Select
Polar Coordinate Input
Cylindrical Interpolation
Tool Center Point Control
Simultaneous 5-Axis Control
IEA Helical Interpolation
EIA Coordinate Rotation
B-Axis Control
Enhanced Y-Axis Mazatrol Face 1 and Face 2
Rotary Axis Sub-Micron Control
EIA Helical Tapping
Sub-Spindle 1/1000 Degree Positioning
Coolant Through Milling Spindle
Coolant Through Mill Spindle 213 PSI
Flood Coolant Lower Turret 71 PSI
B-Axis 0.0001 Degree Incremental Positioning
B-Axis Index 5 Degree Coupling Clamp
Auto Chuck Jaws Open/Close Confirmation 1st & 2nd Spindle
C1-C2 Rotary Axis Synchronous Operation
Auto Tool Length Measurement Eye
