Mazak Mazatrol 640T 5000 rpm MULTIPLEX 6200Y 4 Axis

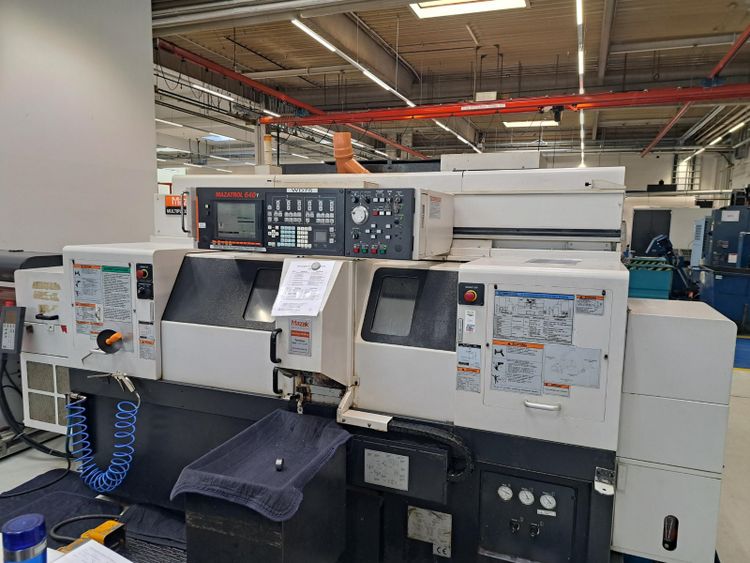

MAZAK MULTIPLEX 6200Y
2007

Control: Mazatrol 640T
CNC turning center with 2 turrets and 2 spindles
Max turning diameter: 320 mm
Max machining length (chucked workpiece): 180 mm
Bar capacity: 51 mm
Travel X/Y/Z: 240 / 100 / 495 mm
Rapid traverse X: 30 m/min
Rapid traverse Y: 10 m/min
Rapid traverse Z: 33 m/min
Number of spindles: 2
Spindle speed: 5000 rpm
Spindle bore: 61 mm
Main spindle motor: 22 kW (30 min), 15 kW (continuous)
C-axis resolution: 0.001°
Number of turrets: 2
Stations per turret: 16
Driven tools available
Driven tool speed: up to 6000 rpm
Driven tool power: 3.7 kW (10 min)
Tool holder height: 25 mm
Boring bar holder diameter: 40 mm
Chuck diameter: Kitagawa B-208, 210 mm
Machine weight: 8400 kg
Approx. footprint: approx. 4000 x 2500 mm
EIA/ISO programming option
Tool-Eye automatic tool measurement
Work zone partition
Automatic parts catcher with conveyor
LNS Quick Load Servo III short bar loader
High-pressure coolant system 10 bar
Chip conveyor: Mayfran ConSep 2000 II
