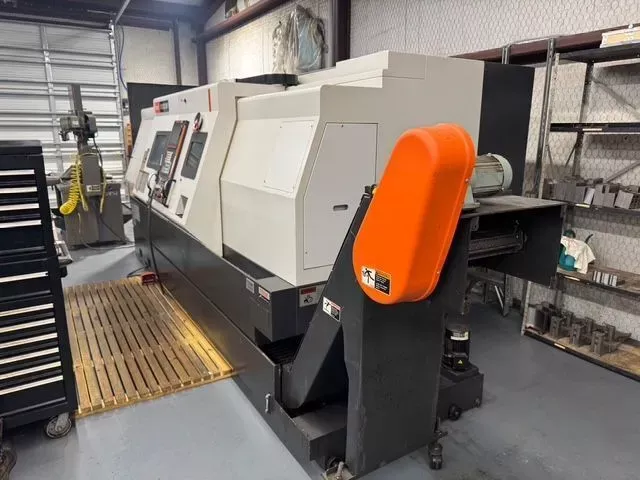

Mazak MAZATROL 640T CNC color conversational control 3,300 RPM QTN NEXUS 350II/1500 2 Axis

X-axis travel: 10.63"
Z-axis travel: 59.03"
Rapid traverse rate X: 787 in/min
Rapid traverse rate Z: 984 in/min
Control: MAZATROL 640T CNC color conversational control
Number of axes: 2
Swing over bed: 26.8"
Turning diameter: 16.5"
Machining length: 59.6"
Spindle speed: 3,300 RPM
Spindle motor: 40 hp
Spindle nose: A2-11
Spindle bore diameter: 4.4"
Spindle bar capacity: 4"
Gear ranges: 2
Turret configuration: 12 stations
Chuck size: 12"
Tailstock quill diameter: 3.94"
Tailstock taper: MT 5
Tailstock travel: 55.8"
Programmable tailstock: Yes
Machine weight: 17,900 lb

Automatic tool eye
Chip conveyor
EIA/ISO programming
Spiral function
MT 5 built-in live center
High-pressure coolant
EIA 3-D compensation
Rotation, geometric, and scaling
External data I/O
Thread cutting
Variable 600 sets
EIA helical tap
EIA pattern cycle
Tilted work plane
Inverse time control
Programmable tailstock
Pitch error compensation
