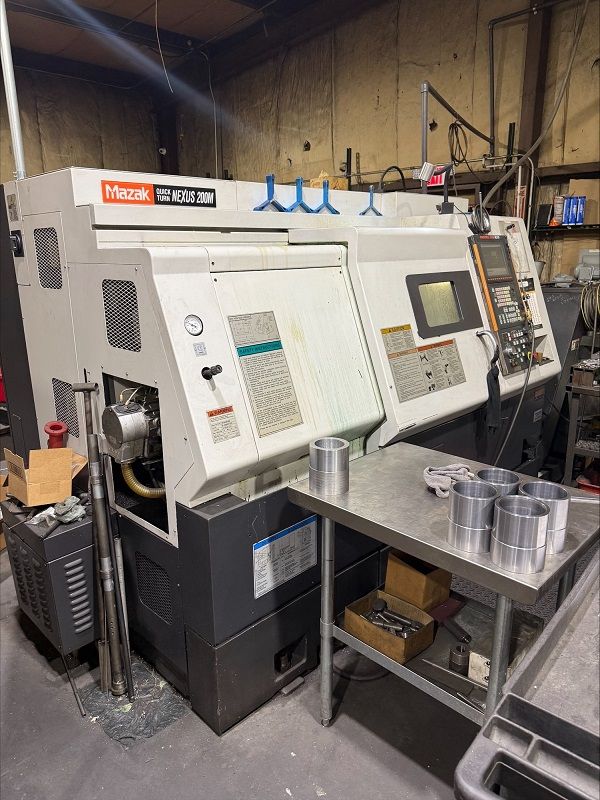

Mazak MAZATROL 640T Nexus CNC Control 5000 RPM QUICK TURN NEXUS 200M 2 Axis

MAZAK QUICK TURN NEXUS 200M
2004

Chuck Size 8"
Max Diameter Bar Capacity 2"
Max Swing Over Bed / Carriage 26.5" / 14.0"
Max Machining Length 21.29"
Spindle Motor 35 / 30 HP
Spindle Speed 35 - 5000 RPM
Spindle Nose A2-6
Spindle Bore 3"
Tools 12
Milling Motor 7.5 HP
Milling Speed 25 - 4500 RPM

Rapid Traverse Rates (X / Z) 1181 / 1299 IPM
X-Axis Travel 9.05"
Z-Axis Travel 22.63"
C-Axis Index .001 Degrees
Turret Index (Single Step / Full) 0.2 / 0.6 Seconds
Machine Dimensions (L x W x H) 106.81" x 73.23" x 72.44"
Machine Weight 10,000 lbs.
Max Turning Diameter (Max / Std) 14.75" / 10.87"
Spindle Torque 258 ft. lbs.
Tailstock Taper MT#5
Tool Change Time (Single / Full Step) 0.2 / 0.6 Seconds

MAZATROL 640T Nexus CNC Control
12" Color LCD
PC/MCIA Interface
Conversational Programming
8" Hydraulic Chuck
C-Axis Live Tooling Capability
Chip Conveyor (Side Exit)
Programmable Tool Eye
Manual Tailstock with Hydraulic Quill
Color Graphic Display
Tool Life Management
(2) Live Holders
(4) Boring Bar Holders
(4) OD Wedge Blocks
Manufacture Date November 2004
452 Power On Time
570 Auto Operation Time
13 Auto Cut Time
8764 Total Cut Time
452 Total Time
