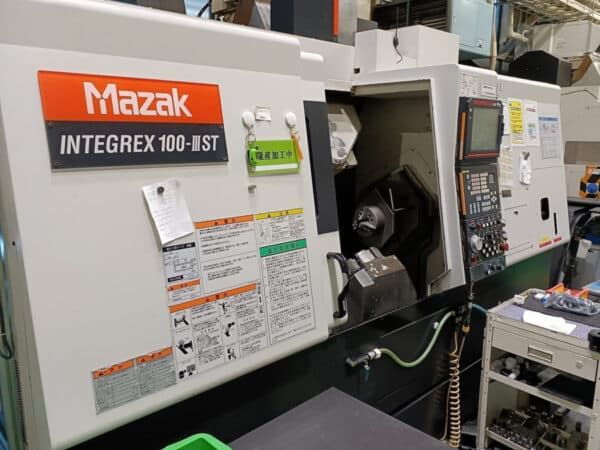

Mazak Mazatrol Fusion 6,000 RPM INTEGREX 100-3ST 2 Axis

Maximum Cutting Length: 29.65"
Maximum Distance Between Chuck Faces: 28.9"
Control: Mazatrol Fusion
Chip Conveyor
Maximum Bar Capacity: 1.65"
Maximum Swing: 21.46"
Maximum Swing with Y-Axis: 16.22"–21.46"
Maximum Swing over Cross Slide: 13.86"
Maximum Swing over Lower Turret: 15.75"
Main Spindle Nose: A2-5
Main Spindle Bore: 2.4"
Main Spindle Speed: 6,000 RPM
Main Spindle Power (Cont./30 min): 10/15 HP
Main Spindle Torque: 119 ft-lbs
Main Spindle Index: 0.0001°
3,600,000 Positions
Sub Spindle Nose: A2-5
Sub Spindle Bore: 2.4"
Sub Spindle Drawtube ID: 1.69" x 24.8" deep
Sub Spindle Speed: 6,000 RPM
Sub Spindle Power (Cont./30 min): 10/15 HP
Sub Spindle Torque: 119 ft-lbs
Sub Spindle Index: 0.001°
Chuck Size: 6" x2
