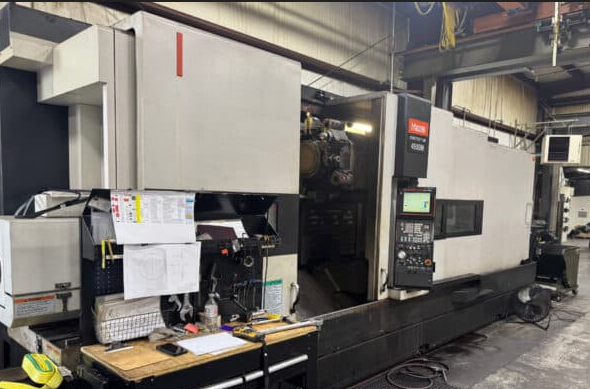

Mazak Mazatrol Fusion 640MT Pro 1,600 RPM (2 ranges) CYBERTECH TURN 4500M 3 Axis

X-axis travel 21.25"
Z-axis travel 123.23"
C-axis torque (30 min) 1,045 ft-lbs

Control Mazatrol Fusion 640MT Pro
Maximum swing diameter 33.8"
Swing over carriage 27.5"
Swing over carriage with steady rest 20.87"
Maximum cutting diameter 31.9"
Maximum cutting length 120"
Spindle index (programmable) 0.001°
Optional spindle bore 7.28"
Spindle nose A2-15
Spindle speed range 1,600 RPM (2 ranges)
Spindle horsepower (continuous/30 min) 40/50 HP (AC)
Spindle torque (30 min) 3,320 ft-lbs
Turret type drum
Number of tools 12 bolt-on
Equipped with tailstock
Equipped with steady rest
Equipped with milling
Equipped with C-axis
Equipped with chip conveyor
Prepped for rear chuck
