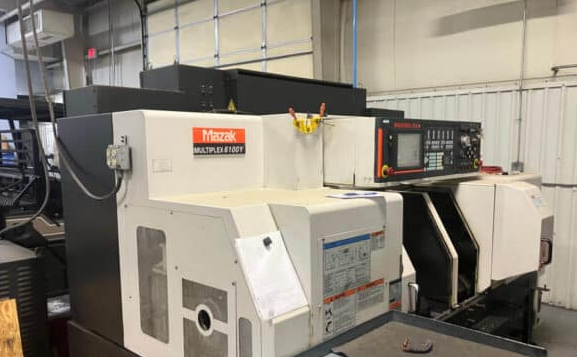

Mazak Mazatrol Fusion 640T 4500 RPM Multiplex 6100Y 2 Axis

Maximum Swing – 9.06″
Standard Cutting Diameter – 9.06″
Maximum Cutting Length Chuckwork – 6.69″
Maximum Cutting Length Shaftwork – 14.57″
Distance Between Spindle Faces Max (Both Heads @ Home Position) – 40.55″
Distance Between Spindle Faces Min – 10.15″
Spindle Nose – A2-5
Spindle Bore – 2.4″
Maximum Bar Diameter – 1.65″
Spindle Speed/Ranges – 6,000 RPM/1
Spindle Indexing (C-Axis) – .001 deg./360,000 Positions
Spindle Horsepower (25% ED) – 15 HP (AC)
Spindle Torque – 119.38 ft./lbs.
Turrets Type – Dodecagonal/Drum Non-lift
Mill Spindle Speed – 4500 RPM
Mill Spindle Horsepower (10 Min) – 5 HP (AC)
Control – Mazatrol Fusion 640T
EIA/ISO
Y-Axis Control
Synchronized Mill Tapping
(2) 6″ Chucks
Parts Catcher with Exit Conveyor
Chip Conveyor
Twin Spindle
Twin Turret
Milling
Y-Axis
Tool Eyes
