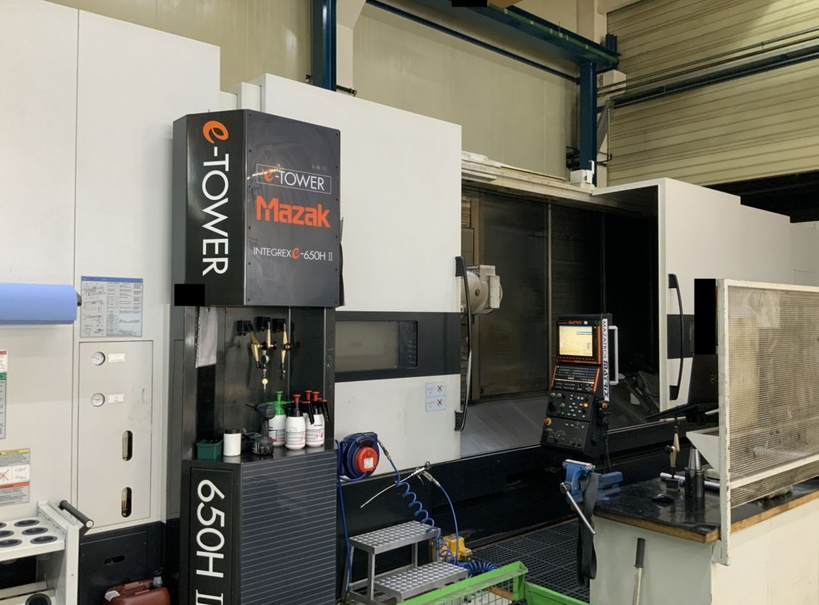

Mazak MAZATROL MATRIX 1,600 RPM INTEGREX e-650H II 4 Axis

X-axis travel: 1,025 mm
Y-axis travel: 650 mm
Z-axis travel: 6,423 mm
B-axis swivel range: 240°
Control: MAZATROL MATRIX
Bar capacity: not specified
Maximum swing diameter: 920 mm
Maximum turning diameter: 1,100 mm
Workpiece weight max: 41 t
Main spindle speed: 35 – 1,600 RPM
Spindle bore: 260 mm
Spindle nose: A2-11″
Spindle bearing inner diameter: 220 mm
Spindle power 30 min / 100% duty: 45.0 / 37.0 kW
Maximum spindle torque: 4,500 Nm
Tailstock taper: MK 6
Milling spindle type: Single spindle with ATC
Milling spindle taper: Steep taper 50
Maximum milling tool diameter: 260 mm
Maximum milling tool length: 500 mm
Milling spindle speed: 35 – 10,000 RPM
Milling spindle motor: 37 kW
Tool magazine capacity: 120 tools, SK50 DIN 69871
Spindle center height: 1,350 mm
Machine length: 13,267 mm
Machine width: 3,938 mm
Machine height: 3,920 mm
Total power requirement: 99.5 kVA
Equipment: Documentation
Equipment: CE marking
