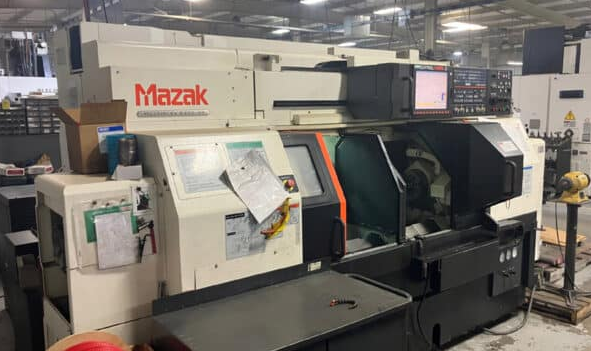

Mazak Mazatrol Matrix 2 5,000 RPM/1 Multiplex 6200Y-II 2 Axis

Standard Chuck Diameter (L&R) – 8″
Maximum Swing – 12.5″
Standard Cutting Diameter – 10.24″
Maximum Bar Diameter – 2.0″
Maximum Machining Length for Chuckwork – 7.0″
Maximum Machining Length for Shaftwork – 21.0″
Distance Between Spindle Faces Max (Both Heads @ Home Position) – 46.85″
Distance Between Spindle Faces Min – 10.15″
Spindle Nose – A2-6
Spindle Bore – 2.4″
Spindle Speed/Ranges – 35-5,000 RPM/1
Spindle Indexing (C-Axis) – .001 deg./360,000 Positions
Spindle Horsepower (Cont/30 Min) – 20/30 HP (AC)
Spindle Torque – 258.2 ft.-lbs.
Control – Mazatrol Matrix 2
Y-Axis Control
Chip Conveyor
Workpiece Unloading Package
