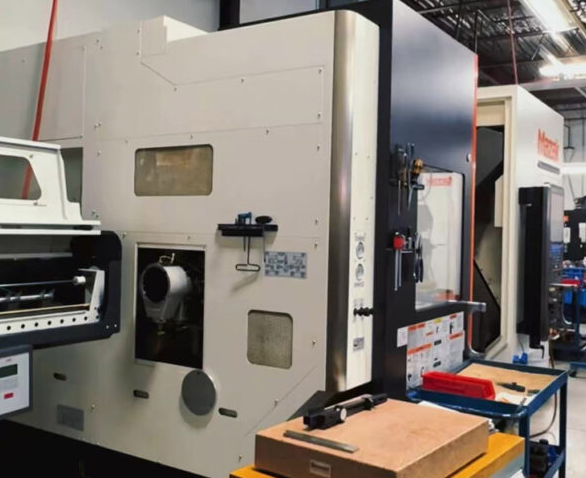

Mazak Mazatrol Matrix 2 5,000 rpm HYPER QUADREX 250MSY 2015 7 Axis

Axis travel X1: 8.2"
Axis travel Y1: +/-2.0"
Axis travel Z1: 29.875"
Axis travel X2 lower: 5.5625"
Axis travel Y2 lower: +0.75"/-2.0"
Axis travel Z2 lower: 32.125"
W axis travel: 34.075"
Control: Mazatrol Matrix 2
Maximum bar work: 3.15"
Maximum swing over upper turret: 14.57"
Maximum swing over lower turret: 12.6"
Spindle nose: A2-8
Spindle bore: 3.58"
Second spindle speed: 35-5,000 rpm
Rotary tool spindle speed: 35-6,000 rpm
Rotary tool spindle horsepower: 7.5 hp
Turret type: 12 position drum VDI
Preparation for BB210 10” 3-jaw or collet chuck
Maximum machining diameter chucking upper: 13.54"
Maximum machining diameter chucking lower: 8.7"
Maximum distance between chuck jaws: 33.86"
Workpiece unloader
Conveyor
Chip conveyor side disposal hinge for 34" bed
LNS Quick Load Servo 80-S2 barfeed
