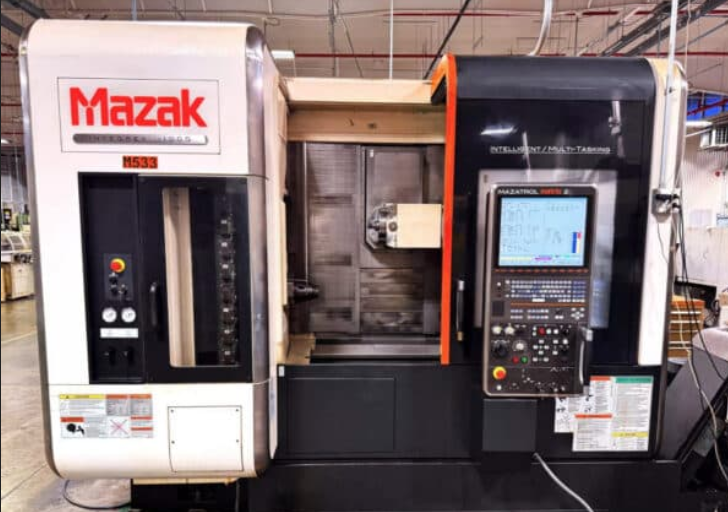

Mazak Mazatrol Matrix 2 6,000 RPM INTEGREX i100S 2 Axis

Maximum swing: 20.9"
Maximum swing over lower turret: 15.7"
Maximum cutting diameter (upper): 19.7"
Maximum cutting diameter (lower): 15.7"
Maximum cutting length: 33.62"
Maximum distance between chuck jaws: 35.55"
Bar capacity: 2"
Main spindle nose: A2-5
Main spindle bore: 2.4"
Main spindle speed: 35–6,000 RPM
Main spindle motor: 10/15 HP
Main spindle torque: 105 ft-lbs
Sub spindle: Yes
Sub spindle nose: A2-5
Sub spindle bore: 2.4"
Sub spindle speed: 35–6,000 RPM
Sub spindle motor: 10/15 HP
Milling spindle speed: 15–12,000 RPM
Milling motor: 10 HP
Control: Mazatrol Matrix 2
Tool magazine: 36 tools
Tool shank: KM63
Chip conveyor
Royal collet chucks (2)
