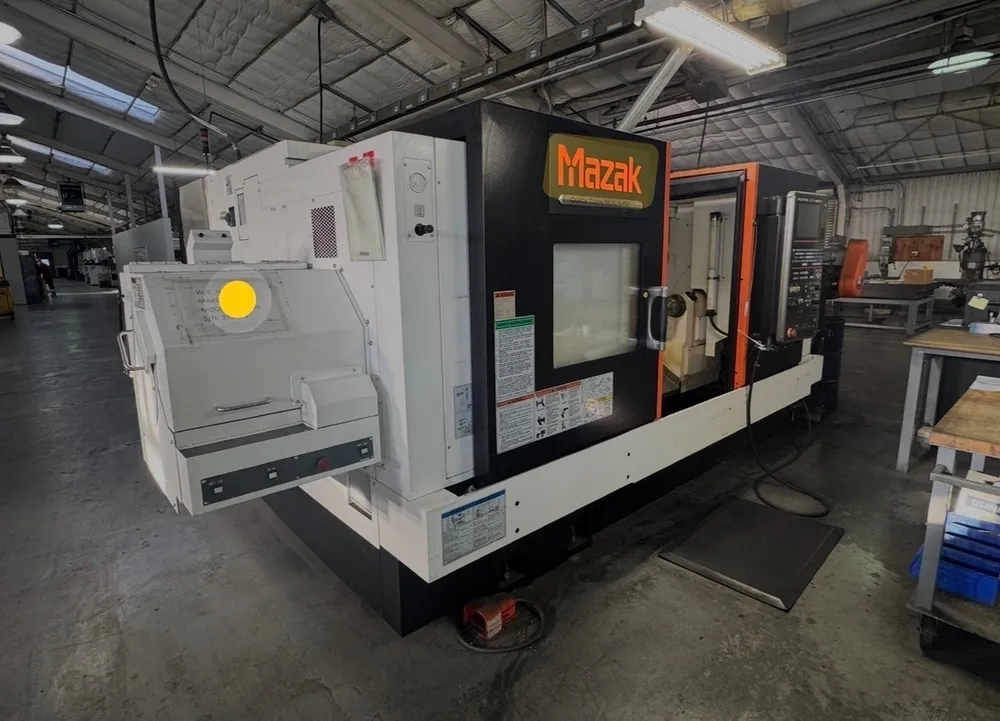

Mazak MAZATROL MATRIX 2 CNC 2000 rpm NEXUS QTN 450II/1000 2 Axis

X-axis travel: 13.37 in
Z-axis travel: 42.12 in
Rapid traverse (X): 1181 in/min
Rapid traverse (Z): 1299 in/min
Control: MAZATROL MATRIX 2 CNC
Bar capacity: 6.5 in
Turning diameter: 22.8 in
Swing over bed: 33.26 in
Machining length: 40.2 in
2 axes
Spindle bore: 7.1 in
Spindle nose: A2-15
Spindle speed: 2000 rpm
Spindle power: 50 hp
18 in hydraulic chuck
12-station turret
Programmable tailstock
Tailstock quill diameter: 5 in
Tailstock taper: MT5
Chip conveyor
12.1 in color LCD
USB interface
LAN port
MT Connect preparation
User macros
EIA/ISO input function
Background tool path check
Thread cutting function
Polar coordinates input (G122)
Velocity and feedrate control
Mazak Voice Adviser
Virtual machining
Re-threading
Thread start point compensation
