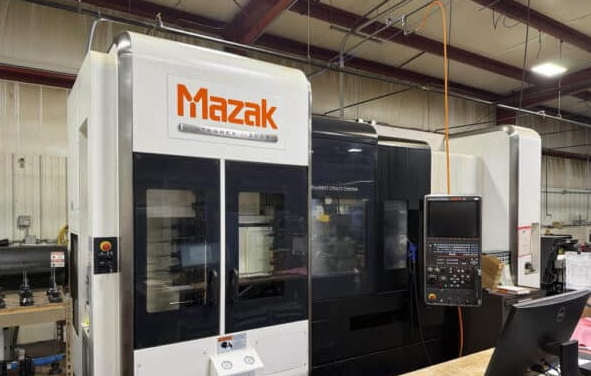

Mazak Mazatrol Matrix 2 CNC Control 4000 RPM Integrex i300S 2 Axis

Maximum Swing 25.9″
Maximum Swing over Cross Slide 25.9″
Maximum Cutting Diameter: Chucking 25.9″
Maximum Cutting Length 59.8″

MAIN SPINDLE SPECIFICATIONS (L)
Spindle Bore 3.58″
Maximum Bar Work 3.0″
Spindle Speed 35-4,000 RPM
Spindle Horsepower (Cont./30 Mins) 30/40 HP (AC)

SECOND SPINDLE SPECIFICATIONS (R)
Spindle Bore 3.58″
Maximum Bar Work Optional (depends on current chuck package)
Spindle Speed 35-4,000 RPM
Spindle Horsepower (Cont./30 Mins) 30/35 HP (AC)

TURRET AND TOOLING SPECIFICATIONS
Magazine Capacity 72
ATC Tool Shank CAPTO
Rotary Tool Spindle Speed 15-12,000 RPM

Mazatrol Matrix 2 CNC Control
Mazak Superflow S8-1000 High Pressure Coolant 1000 PSI/8GPM
Automatic Parts Catcher w/Ejec (3.15” Dia x 5.9” L x 11 lbs)
Chip Conveyor Side Disposal (Hinge Type)
Auto Pecking Cycle with Load Detection
ATS ML3-580S Barfeed
