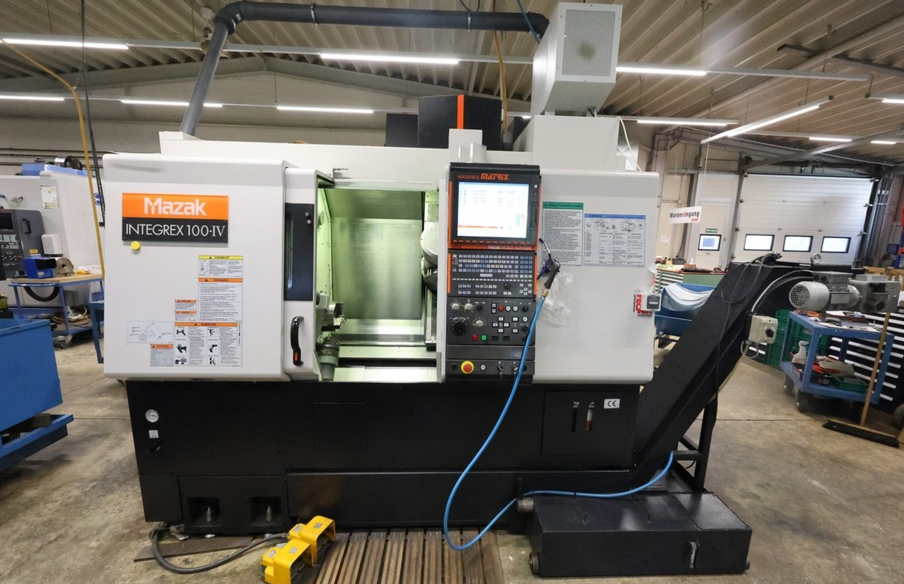

Mazak Mazatrol Matrix 6000 RPM Integrex 100-IV 3 Axis

X-axis travel: 410 mm
Y-axis travel: 570 mm
Z-axis travel: 140 mm
Maximum working diameter: 545 mm
Maximum working length: 519 mm
Main spindle speed: 35 – 6000 RPM
Spindle bore diameter: 61 mm
Max. spindle torque: 161 Nm
Rapid traverse Y/X/Z axis: 30/26/33 m/min
Control: Mazatrol Matrix
Tool taper: Capto C6
Tailstock rapid traverse: 8 m/min
Tailstock travel advance/return: 434/281 mm
Milling head type: Single spindle with ATC
External turning tool size: 20 mm
Internal turning tool size: 32 mm
Milling tool size: Max. 90 × 200 mm
Milling spindle speed: 15 – 12,000 RPM
Maximum outside diameter for bar work: 51 mm
Maximum workpiece weight chuck work: 150 kg
Maximum workpiece weight bar work: 200 kg
Equipment: Chip conveyor
Equipment: Mist extraction
Equipment: Tools
Equipment: Documentation
