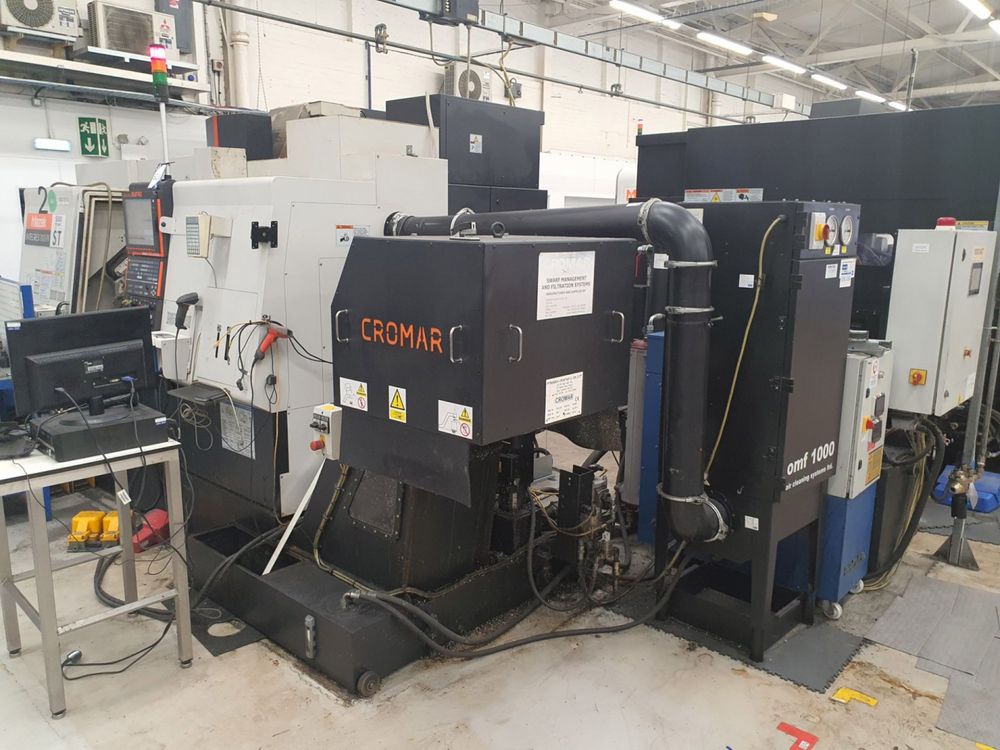

Mazak MAZATROL MATRIX 6000 rpm Integrex 100-IV ST 7 Axis

Mazak Integrex 100-IV ST
Year: 2010

X axis travel: 450 mm
X2 axis travel: 220 mm
Y axis travel: 210 mm
Z axis travel: 904 mm
Z2 axis travel: 903 mm
B axis: -30 ~ 210 degrees
C axis: 0.0001 degree

Control: MAZATROL MATRIX
Lower turret: 9 station

Machine dimensions: 3030 × 2635 × 2500 mm
Machine weight: 7700 kg
Maximum cutting diameter: 500 mm
Maximum cutting length: 854 mm
Maximum tool diameter: 90 mm
Maximum tool diameter with empty adjacent pockets: 130 mm
Maximum tool weight: 5 kg
Milling motor power: 7.5/5.5 kW
Milling RPM: 12000 rpm
Rapid feedrates: 40 m/min

Spindle motor power: 11/7.5 kW
Spindle nose: A2-5
Spindle speed: 6000 rpm

Sub spindle C axis: 0.0001 degree
Sub spindle motor power: 11/7.5 kW
Sub spindle nose: A2-5
Sub spindle speed: 6000 rpm
Sub spindle stroke: 903 mm (W axis)

Swing: 530 mm
Tool change capacity: 36 station
Tool size: CAPTO C6
Bar capacity: 51 mm
