Mazak Mazatrol Matrix CNC Control 6,000 RPM INTEGREX 100-IV ST 6 Axis

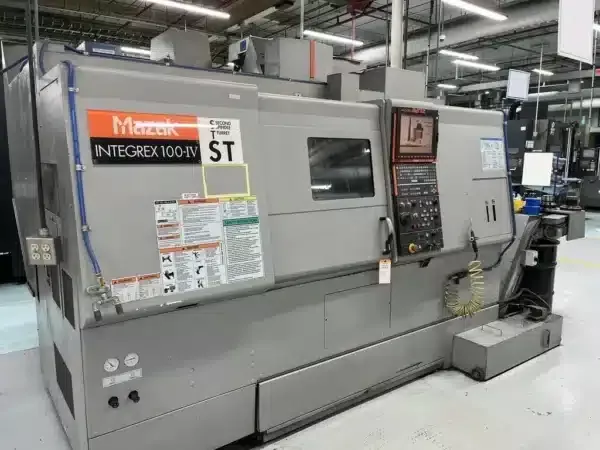

MAZAK INTEGREX 100-IV ST
2013

Chuck Size Main: 2" collet
Chuck Size Sub: 2" collet
Max Swing: 21.46"
Max Swing Using Y-Axis: 16.22" – 21.46"
Max Swing Over Cross Slide: 13.86"
Max Cutting Diameter: 21.46"
Max Machining Length: 29.65"
Max Distance Between Chuck Faces: 28.9"
X-Axis Travel: 16.14"
Y-Axis Travel: ±2.75"
Z-Axis Travel: 31.69"
Lower X2-Axis Travel: 8.66"
Lower Z2-Axis Travel: 30.71"
B-Axis Travel: 225°
C-Axis Spindle Movement (Main): 0.0001°
C-Axis Spindle Movement (Sub): 0.0001°
W-Axis Travel (Sub Spindle): 31.3"
Spindle Nose: A2-5
Spindle Bore: 2.4"
Bar Capacity: 2"
Main Spindle Speed: 6,000 RPM
Main Spindle Motor: 15 HP AC
Upper Turret Positions: 1
Tool Magazine Capacity: 40
Tool Holder Type: CAT 40
Rotary Tool Spindle Power: 7.5 HP
Rotary Tool Spindle Speed: 12,000 RPM
Lower Turret Positions: 9
Lower Turret Type: Drum
Machine Length: 12'
Machine Width: 92"
Machine Height: 89"
Machine Weight: 16,940 lbs
Mazatrol Matrix CNC Control
Synchronized Tapping
Inch/Metric Conversion
EIA/ISO Code Input
3D Coordinate Conversion
Absolute Positioning
XYZ Pitch Error Compensation
EIA Dynamic Compensation
Mazacc-3D High Speed Software
Tool Tip Point Control
Tool Radius Compensation
C1+C2 Synchronous Function
Royal Auto Chuck (Main)
Royal Auto Chuck (Sub)
Through-Spindle Coolant
Coolant Pressure: 213 PSI
Chip Conveyor
