Mazak Mazatrol Matrix Control 6,000 RPM INTEGREX 100-IVS 3 Axis

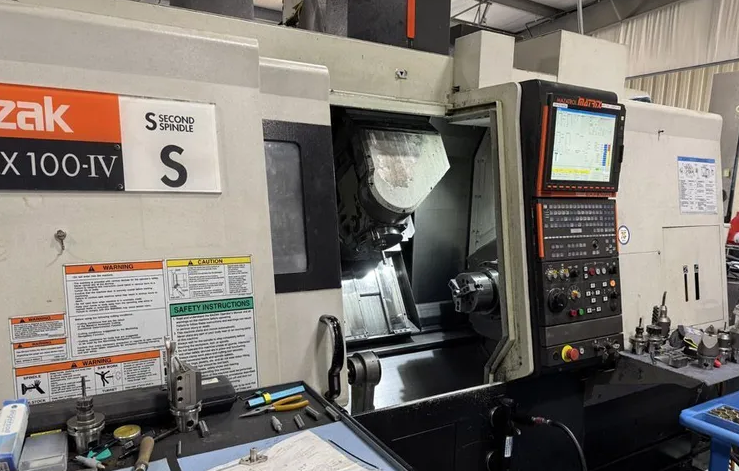

MAZAK INTEGREX 100-IVS
Year: 2008


Maximum Swing........................... 21.46"
NOTE: Tool eye body may limit max. swing.
Maximum Swing using Y-axis.............. 16.22"-21.46"
Mazimum Swing over Cross Slide.......... 13.86"
Maximum Cutting Diameter: Chucking...... 21.46"
Maximum Cutting Length.................. 29.65"
Maximum Distance Between Chuck Faces.... 31.18"

MAIN SPINDLE SPECIFICATIONS (L):
Spindle Nose............................ A2-5
Spindle Bore............................ 2.4"
Maximum Bar Work.... .................. 2.0" Option
Spindle Speed........................... 6,000 RPM
Spindle Index (Programmable)............ 0.0001 Deg.
Spindle Horsepower (Cont./30 Mins.)..... 10/15 HP (AC)
Spindle Torque.......................... 119 ft-lbs.

SECOND SPINDLE SPECIFICATIONS (R)
Spindle Nose............................ A2-5
Spindle Bore............................ 2.4"
Drawtube ID............................. 1.69" x 24.8" deep
Spindle Speed........................... 6,000 RPM
Spindle Index (Programmable)............ 0.0001 Deg. C-axis optional
Spindle Horsepower (Cont./30 min)....... 10/15 HP (AC)
Spindle Torque.......................... 119 ft-lbs.

TURRET AND TOOLING SPECIFICATIONS:
Type of Turret.......................... 1 position w/ATC
Tool Shank Height....................... 3/4"
Tool Size (Boring Bar Max. Dia.)........ 1.25"
Magazine Capacity....................... 40 tools
Tool Selection Method................... Random
Tool to Tool ATC Time................... 1.2 sec.
Max. Tool Dia. w/All Pockets Full....... 2.76"
Max. Tool Dia. w/Adjacent Pockets Empty. 3.54"
Max. Tool Length (From Gage-Line)....... 7.87"
Maximum Tool Weight..................... 8.8 lbs.
ATC Tool Shank.......................... KM
Rotary Tool Spindle Speed............... 12,000 RPM
Rotary Tool Spindle Horsepower (20% ED). 7.5 HP (AC)
Rotary Tool Torque (20% ED)............ 36.2 ft-lbs
Maximum Face Mill....................... 3"
Maximum End Mill........................ 1"
Maximum Drill........................... 1"
Maximum Tap............................. 5/8 UNC

AXIS TRAVELS:
B-Axis.................................. 225 degrees
(0.0001 degree increments)
Y-Axis.................................. +/-2.75"
X-Axis.................................. 16.14"
Z-Axis.................................. 31.69"
Second Headstock W-Axis................. 31.3"

AXIS RAPID RATES:
Y-Axis.................................. 1024 IPM
X-Axis.................................. 1181 IPM
Z-Axis.................................. 1299 IPM
Second Headstock W-Axis................. 1181 IPM
C-Axis.................................. 555 RPM

GENERAL SPECIFICATIONS:
Floor Space (WxL)....................... 118.9" x 85.04"
Machine Height.......................... 96.18"
Total Power Required (Machine Only)..... 32.9 KVA
NOTE: Actual Machine Main Transformer
KVA Rating Will be Greater.
Air Requirements........................ 72 PSI/24.7 CFM
Machine Weight.......................... 16,314 lbs.

Equipped With (subject to buyer verification):
Mazatrol Matrix Control
15” Color LCD
EIA/ISO Code Input Function
3D Coordinate Conversion
GOO Slope Constant
Shape Compensation for Rotary Axes
Cylindrical (G07) & Polar Coordinate (G12)
Milling-Spindle Synchronous Tapping
EIA/ISO 1st Spdl & Mill Spdl Ind. Rotation
Inch/Metric Conversion
Cardbus I/F (2-Slot)
LAN Port
USB I/F
Y-Axis Control
XyZ Pitch Error Compensation Input
KM Type Tooling
Coolant Through Milling Head
15KG/213 PSI Thru Coolant/Flood Coolant Siul-Flowable
C-Axis 0.0001 Degree Incr. (1st Spindle)
40 KM-Tool Magazine
Rotary Tool Spindle Speed 12,000 RPM
B-Axis Index 5 Degree (Coupling Clamp)
Chip Conveyor Side Disposal (Hinge Type)
Automatic Tool Eye
Auto Chuck Jaws Open/Close (1&2 Spindle)
Chuck Open/Close Confirm. (1&2 Spindle)
Windows XP Operating System for Mazak Machine Control
Automatic Parts Catcher w/Ejec (2.0” Dia x 3.9”L x 5.5 lb)
C1-C2 Synchronous function
Relocation Device
2nd Spindle C-Axis 0.0001 Degree Increments
Re-Threading Function
High Smoothing Control
Mazacc-3D High Speed Software Package
EIA/ISO Function Simultaneous 5 Axes
Tool Tip Point Control / Simult. 5 Axes
Tool Radius Compensation / 5-Axis
Prep for Multi & Flash System
6” Chuck BB-06 for 2” Diameter Bar Capacity
6” Chuck B-206 for 2nd Spindle
