Mazak MAZATROL MATRIX NEXUS CONTROL (VOICE ADVISER) 3,300 RPM Nexus 350MSY 4 Axis

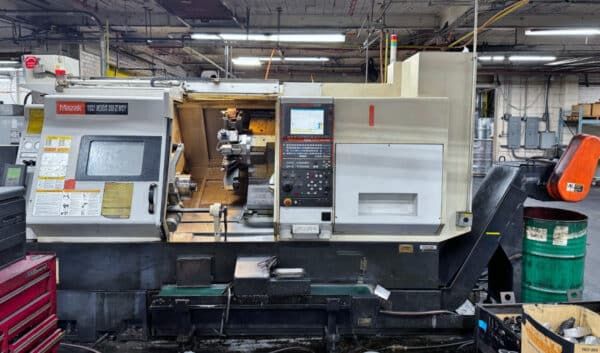

Mazak Nexus 350MSY
2009

SWING OVER BED 29.5″
MAX CUTTING DIAMETER 14.75″
MAX CUTTING LENGTH 25.6″
X-AXIS TRAVEL 11.75″
Y-AXIS Yes
Y-AXIS TRAVEL 4″ (+/- 2″)
Z-AXIS TRAVEL 26.25″
CHUCK SIZE 15″
BAR CAPACITY 4″

SPINDLE BORE 4.4″
SPINDLE NOSE A2-11
SPINDLE MOTOR 30 hp
SPINDLE SPEED 3,300 RPM

SUB SPINDLE Yes
SUB SPINDLE – CHUCK SIZE 10″
SUB SPINDLE – SPINDLE NOSE A2-8
SUB SPINDLE – SPINDLE MOTOR 20 hp
SUB SPINDLE – SPINDLE SPEED 4,000 RPM

TURRET CAPACITY 12
LIVE MILLING Yes
LIVE MILLING SPEED 4,000 RPM

EQUIPPED WITH:
MAZATROL MATRIX NEXUS CONTROL (VOICE ADVISER)
LNS QUICK LOAD SERVO S3 MAGAZINE BAR FEEDER (5’)
Y-AXIS
LIVE MILLING
SUB SPINDLE
HAINBUCH COLLET CHUCK (MAIN)
15”, 3-JAW ATS (400-128) HYDRAULIC CHUCK (MAIN)
10” 3-JAW KITAGAWA (B-210) HYDRAULIC CHUCK (SUB)
MAZAK SUPERFLOW T8-1000 HIGH-PRESSURE COOLANT SYSTEM (1,000 PSI)
TOOL PRESETTER
PARTS CATCHER
CHIP CONVEYOR
PARTS CONVEYOR
(7) LIVE TOOL HOLDERS
