Mazak MAZATROL MATRIX NEXUS CONTROL (VOICE ADVISER) 3,300 RPM QTN-350MSY 3 Axis

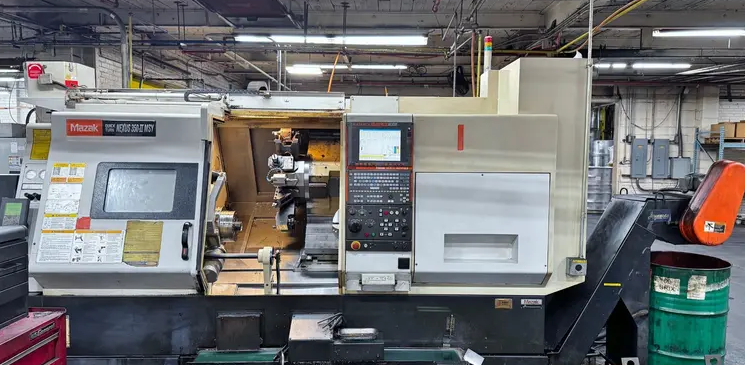

MAZAK QTN-350MSY
Year: 2009

SWING OVER BED 29.5"
MAX CUTTING DIAMETER 14.75"
MAX CUTTING LENGTH 25.6"
X-AXIS TRAVEL 11.75"
Y-AXIS Yes
Y-AXIS TRAVEL 4" (+/- 2")
Z-AXIS TRAVEL 26.25"
CHUCK SIZE 15"
BAR CAPACITY 4"
SPINDLE BORE 4.4"
SPINDLE NOSE A2-11
SPINDLE MOTOR 30 hp
SPINDLE SPEED 3,300 RPM
SUB SPINDLE Yes
SUB SPINDLE - CHUCK SIZE 10"
SUB SPINDLE - SPINDLE NOSE A2-8
SUB SPINDLE - SPINDLE MOTOR 20 hp
SUB SPINDLE - SPINDLE SPEED 4,000 RPM
TURRET CAPACITY 12
LIVE MILLING Yes
LIVE MILLING SPEED 4,000 RPM

MAZATROL MATRIX NEXUS CONTROL (VOICE ADVISER)
LNS QUICK LOAD SERVO S3 MAGAZINE BAR FEEDER (5’)
Y-AXIS
LIVE MILLING
SUB SPINDLE
HAINBUCH COLLET CHUCK (MAIN)
15”, 3-JAW ATS (400-128) HYDRAULIC CHUCK (MAIN)
10” 3-JAW KITAGAWA (B-210) HYDRAULIC CHUCK (SUB)
MAZAK SUPERFLOW T8-1000 HIGH-PRESSURE COOLANT SYSTEM (1,000 PSI)
TOOL PRESETTER
PARTS CATCHER
CHIP CONVEYOR
PARTS CONVEYOR
(7) LIVE TOOL HOLDERS
