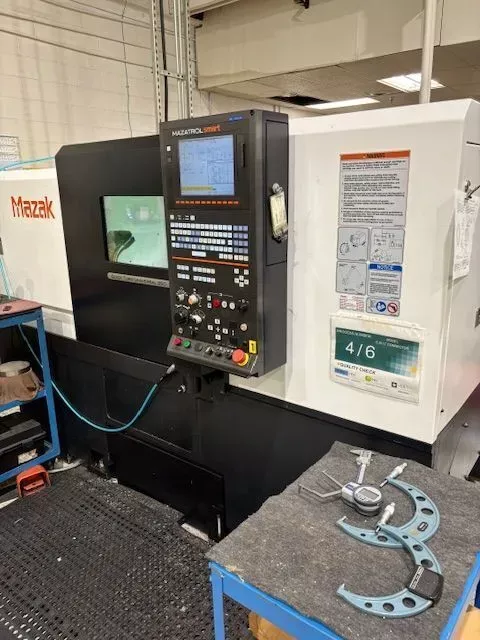

Mazak Mazatrol Smart CNC 4500 RPM QUICK TURN UNIVERSAL 250 2 Axis

X-axis travel: 8.5"
Z-axis travel: 25"
Rapid traverse X: 1,181 in/min
Rapid traverse Z: 1,181 in/min

Control: Mazatrol Smart CNC
Automatic tool eye
Programmable tailstock with center
Bar capacity: 2"
Swing over bed: 27.4"
Turning diameter: 16.25"
Machining length: 18.83"
Distance between centers: 22.08"

Spindle speed: 4500 RPM
Spindle horsepower: 20 HP
Spindle nose: A2-6
Chuck size: 8"

Turret positions: 12
Tailstock taper: #5
Tailstock travel: 14.17"
Chip conveyor
Weight: 11,000 lbs
Includes manuals
Includes available tool holders

Kitagawa 8" 4-jaw hydraulic chuck with hard and soft jaws
Tool block holders and wedge block
EIA, spiral, rotation, geometric thread
Polar coordinate input
EIA 3D comp, comparison stop
G54.1
Variable 600 sets
Pitch error compensation
