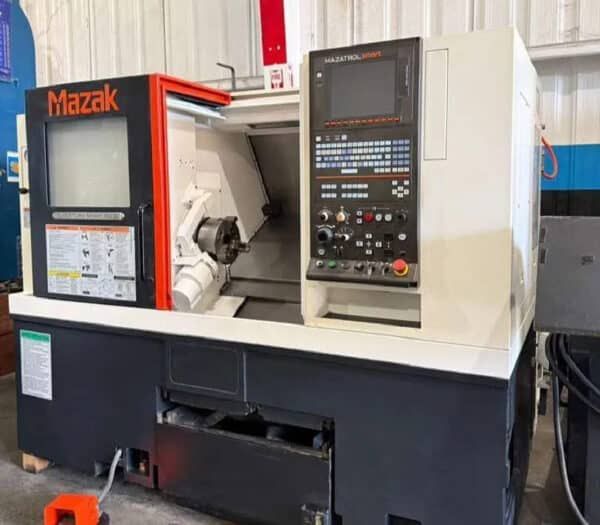

Mazak Mazatrol Smart CNC 5,000 RPM QT SMART 150S 2 Axis

X Axis Travel: 7.87″
Z Axis Travel: 22.00″
Rapid Traverse X Axis: 1299 IPM
Rapid Traverse Z Axis: 1417 IPM
Control: Mazatrol Smart CNC
Max Turning Diameter: 13.00″
Max Turning Length: 20.47″
Max Swing Over Bed: 22.83″
Max Bar Capacity: 2.04″
Spindle Bore: 2.40″
Spindle Nose: A2-6
Spindle Speed: 5,000 RPM
Spindle Power: 20 HP
Turret Capacity: 8 Stations
Turning Tool Shank Size: 1.0″
Boring Bar Shank Diameter: 1.57″
Turret Index Time: 0.2 Seconds
Tailstock Taper: MT-5
Tailstock Quill Diameter: 4.33″
Tailstock Quill Travel: 3.93″
Power Source: 27 kva / 400v / 50/60 Hz / 3-Phase
Overall Dimensions: 86.16″ X 63″ X 67″
Weight: 8,360 LBS
8″ 3-Jaw Kitagawa B-208 Chuck
Automatic Tool Presetter
Tailstock
Foot Operated Control for Chuck
Chip Conveyor
(3) Boring Tool Holders Mounted on Turret
