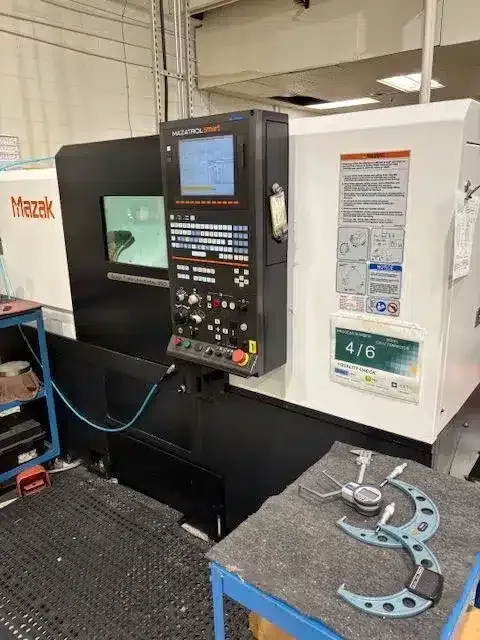

Mazak Mazatrol Smart CNC Conversational Control 4,500 RPM QTU-250 2 Axis

Swing Over Bed: 27.4"
Machining Length: 18.83"
Distance Between Centers: 22.08"
Chuck Size: 8"
Spindle Nose: A2-6
Turning Diameter, Shaft Diameter: 16.25"
Spindle Speed Range: 14 – 4,500 RPM
Spindle Horsepower: 20 HP
X1-Axis Travel: 8.5"
Z1-Axis Travel: 25"

Rapid Traverse Rate X1: 1,181 in/min
Rapid Traverse Rate Z1: 1,181 in/min
Turret Positions: 12
Tailstock Taper: #5
Programmable Tailstock: Yes
Tailstock Travel: 14.17"
Number of Axes: 2
Bar Capacity: 2"
Tailstock: Yes
Live Tooling: No
Sub Spindle: No
Control Type: CNC
Weight: 11,000 lbs

Equipped with Mazatrol Smart CNC Conversational Control
Equipped with Automatic Tool Eye
Equipped with Programmable Tailstock with Center

All Available Manuals
Available Tool Holders
Kitagawa 8" 4-Jaw Hydraulic Chuck
All Tool Block Holders
EIA, Spiral, Rotation, Geometric
Thread, Polar Coordinate Input
EIA 3D Compensation, Comparison Stop, G54.1
Variable 600 Sets
Pitch Error Compensation
Chip Conveyor
