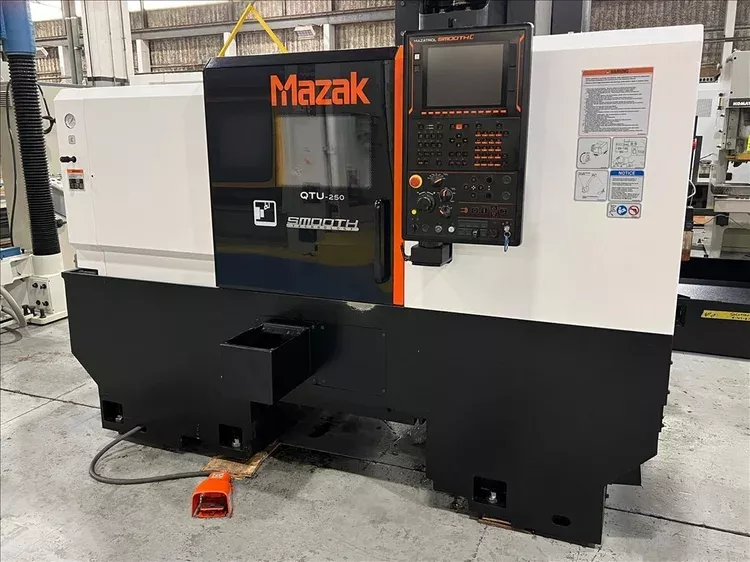

Mazak MAZATROL SMOOTH C CNC CONTROL UNIT 4,500 RPM QTU 250 2 Axis

X1 - Axis Travel 8.5"
Z1 - Axis Travel 23.7"
Rapid Traverse Rate - X1 1,181 in/min
Rapid Traverse Rate - Z1 1,417 in/min
Control MAZATROL SMOOTH C CNC CONTROL UNIT
Swing Over Bed 27.4"
Machining Length 21"
Distance Between Centers 23.75"
Bar Capacity 2"
Turning Diameter 13.5"
Chuck Size 8"
Spindle Nose A2-6
Spindle Bore Diameter 2.4"
Spindle Speeds 4,500 RPM
Spindle Horsepower 20 hp
Turret Configuration 12
Tailstock Taper MT #4
Programmable Tailstock YES
Tailstock Travel 21"
Machine Weight 11,000 LBS
8" 3 Jaw Hydraulic Chuck Thru Hole 2.4" Bore 2.0" Bar Capacity
Tool Presetter
Auto Parts Catcher
High Pressure Coolant System
