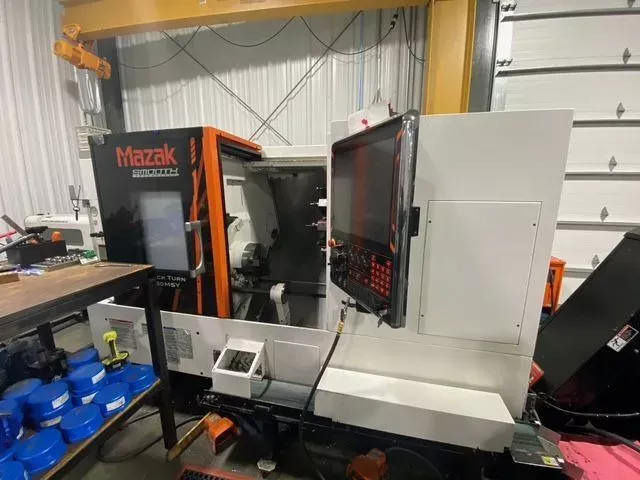

Mazak MAZATROL SMOOTH G CNC COLOR CONTROL 4,000 RPM QUICK TURN 250MSY 5 Axis

X1 - Axis Travel: 9"
Z1 - Axis Travel: 22.75"
Y1 - Axis Travel: 4"
W - Axis Travel Sub Spindle: 23"
C - Axis Indexing 1: 0.00
C - Axis Indexing 2: 0.00
Control: MAZATROL SMOOTH G CNC COLOR CONTROL
Swing Over Bed: 26.5"
Turning Diameter: 14.75"
Turning Length: 21.27"
Distance Between Spindles: 21.275"
Chuck Size 1: 10"
Spindle Nose 1: A2-8
Spindle Bore Diameter 1: 3.6"
Bar Capacity 1: 3.25"
Spindle Speeds 1: 4,000 RPM
Spindle Horsepower 1: 35 hp
Chuck Size 2: 6"
Spindle Nose 2: A2-5
Spindle Bore Diameter 2: 1.7"
Spindle Speeds 2: 6,000 RPM
Spindle Horsepower 2: 15 hp
Turret Tool Positions 1: 12 station
Turret Rotary Tool Speeds 1: 6,000 RPM
Turret Rotary Tool Horsepower 1: 10 hp
Rapid Traverse Rate - X1: 1,181 ipm
Rapid Traverse Rate - Z1: 1,299 ipm
Rapid Traverse Rate - Y1: 826 ipm
Programmable Tailstock: No
Machine Weight: 11,905 lb
6" 3-jaw rear spindle
Chip conveyor
All available tool holders
All available manuals
Barfeed interface
LNS Servo 80 S2 short magazine barfeed system
Automatic tool eye
Twin automatic parts catchers, front chuck & rear chuck
(3) Rotary heads
EIA, Spiral, EIA 3D comp, Rotation, Geometric, Scaling, Ext - Data I/O
SHPE comp, Thread, Sub C-axis control, Inverse time
Auto ATLM, Polar coordinates input, Comparison stop, G54.1, Sync mill tap
Variable 600 sets, Cylinder & Polar coordinates, G00 slope const.
EIA helical tap cycle, EIA pattern cycle, Tilted work plane
Re-thread, Program memory expansion, Pitch error comp
Only 2,348 cutting hours
